Webb Caliper Products

Caliper/Carrier Assemblies

Type: NS225 Model: KL1400-01
LH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: Van Hool / New Flyer
Webb Caliper/Carrier Assembly Model #: KL1400-01
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Caliper Model #: KL1400
Webb Carrier Model #: KT1001
Rationalized?: No
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.

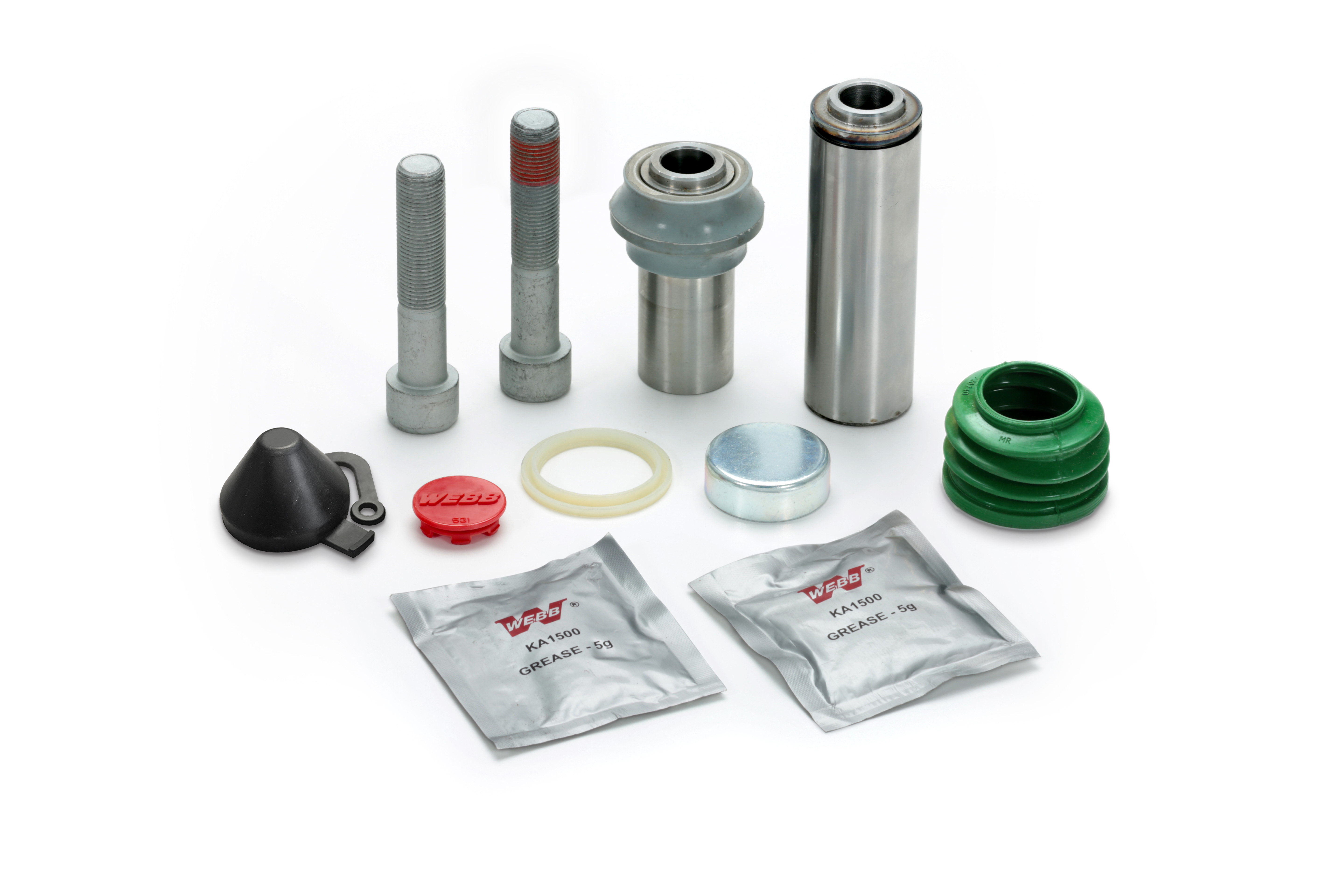

INSTALLATION KITS INCLUDED

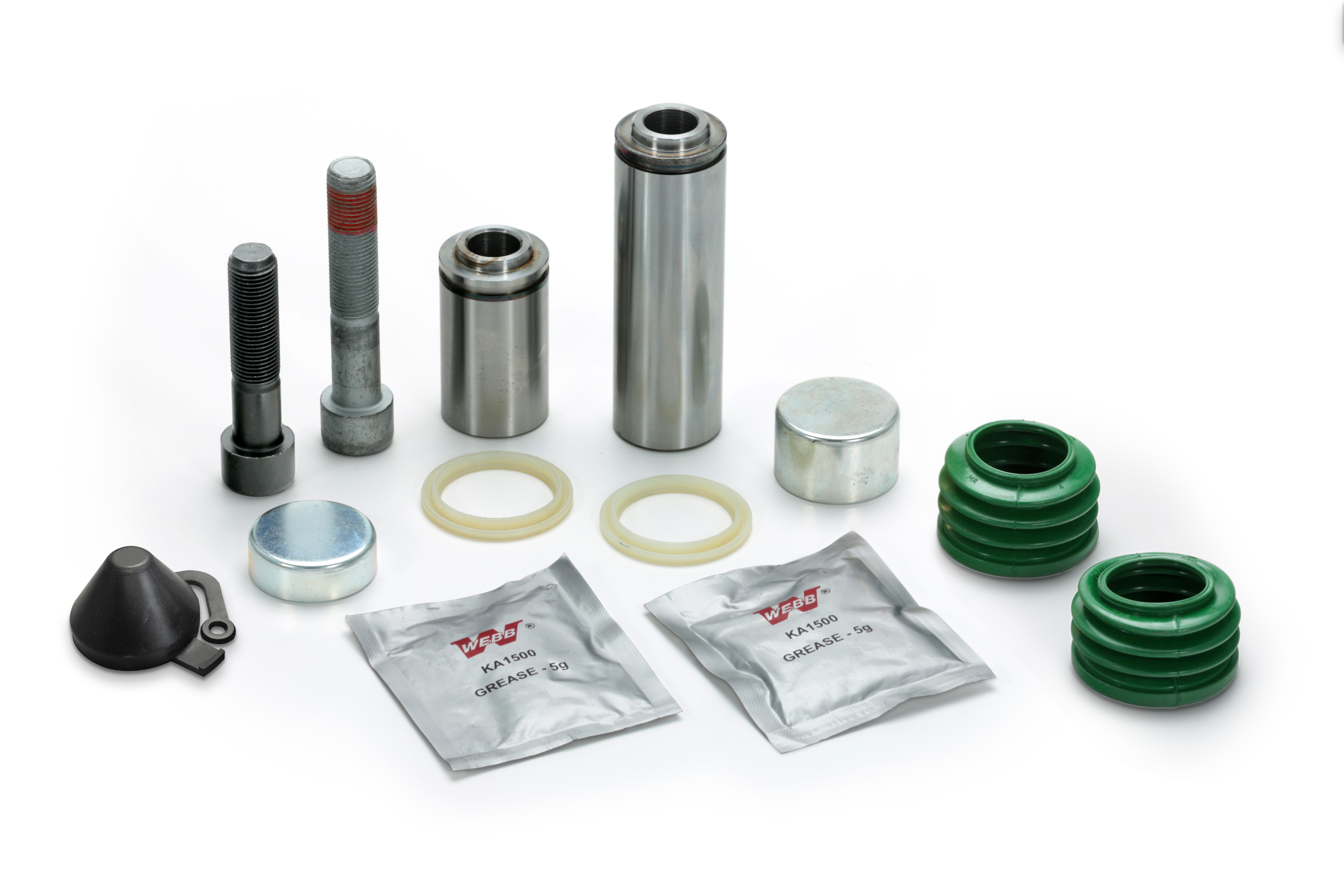

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

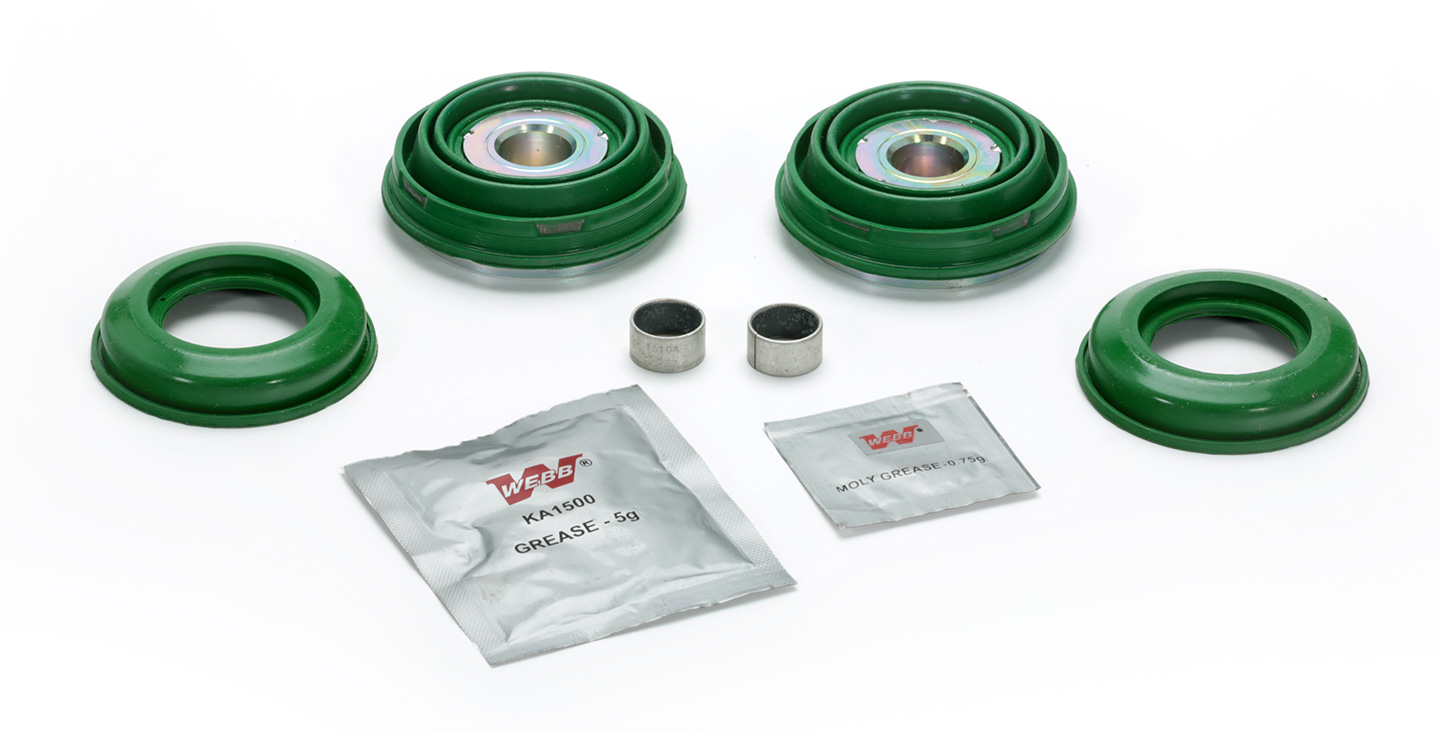

Tappet Boot Kit : KS0400

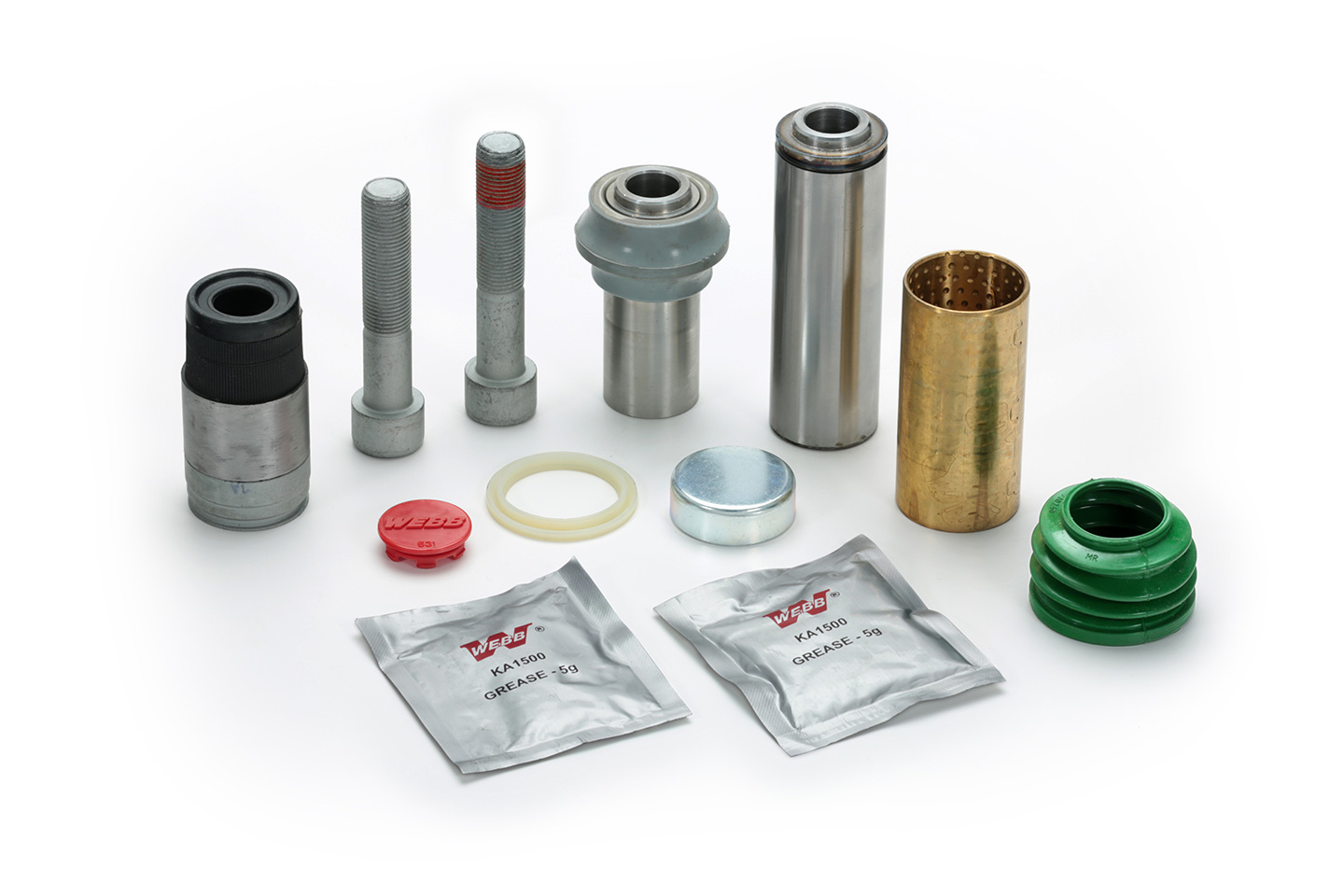

Guide Sleeve Kit: KS0215

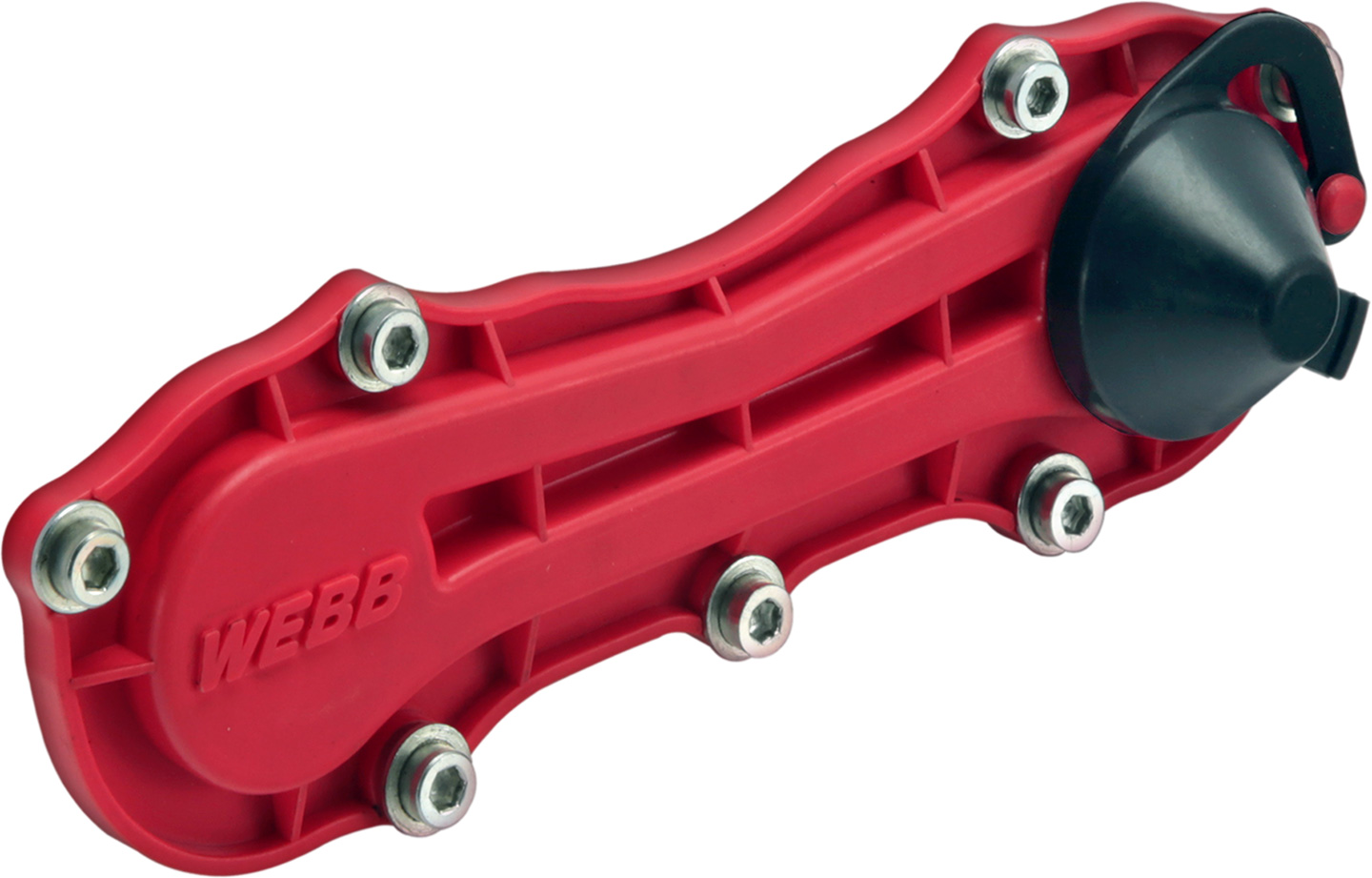

Chain Cover Kit: KS0300

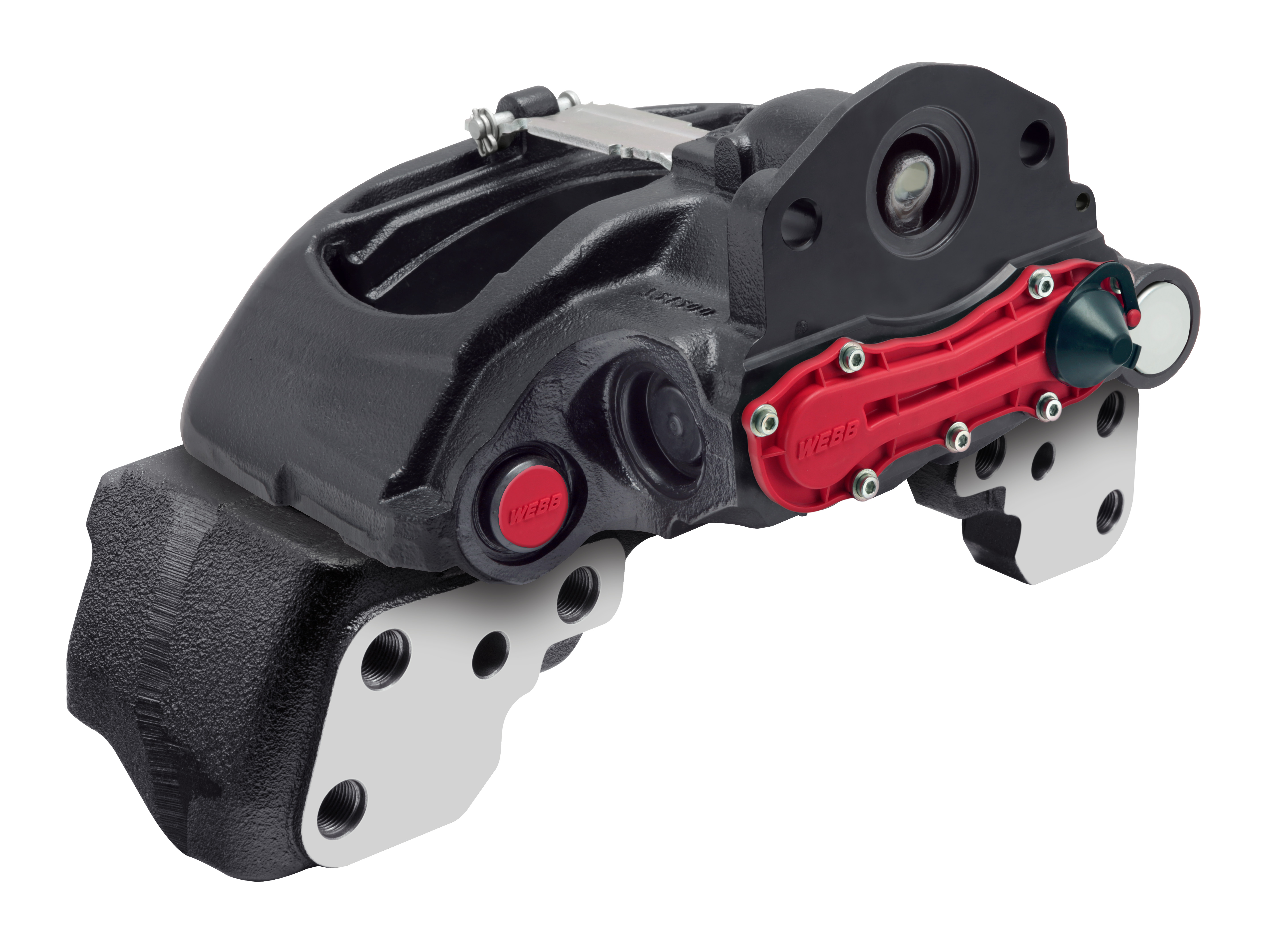

Type: NS225 Model: KR1400-01
RH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: Van Hool / New Flyer
Webb Caliper/Carrier Assembly Model #: KR1400-01
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Caliper Model #: KR1400
Webb Carrier Model #: KT1001
Rationalized?: No
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0215


Chain Cover Kit: KS0300

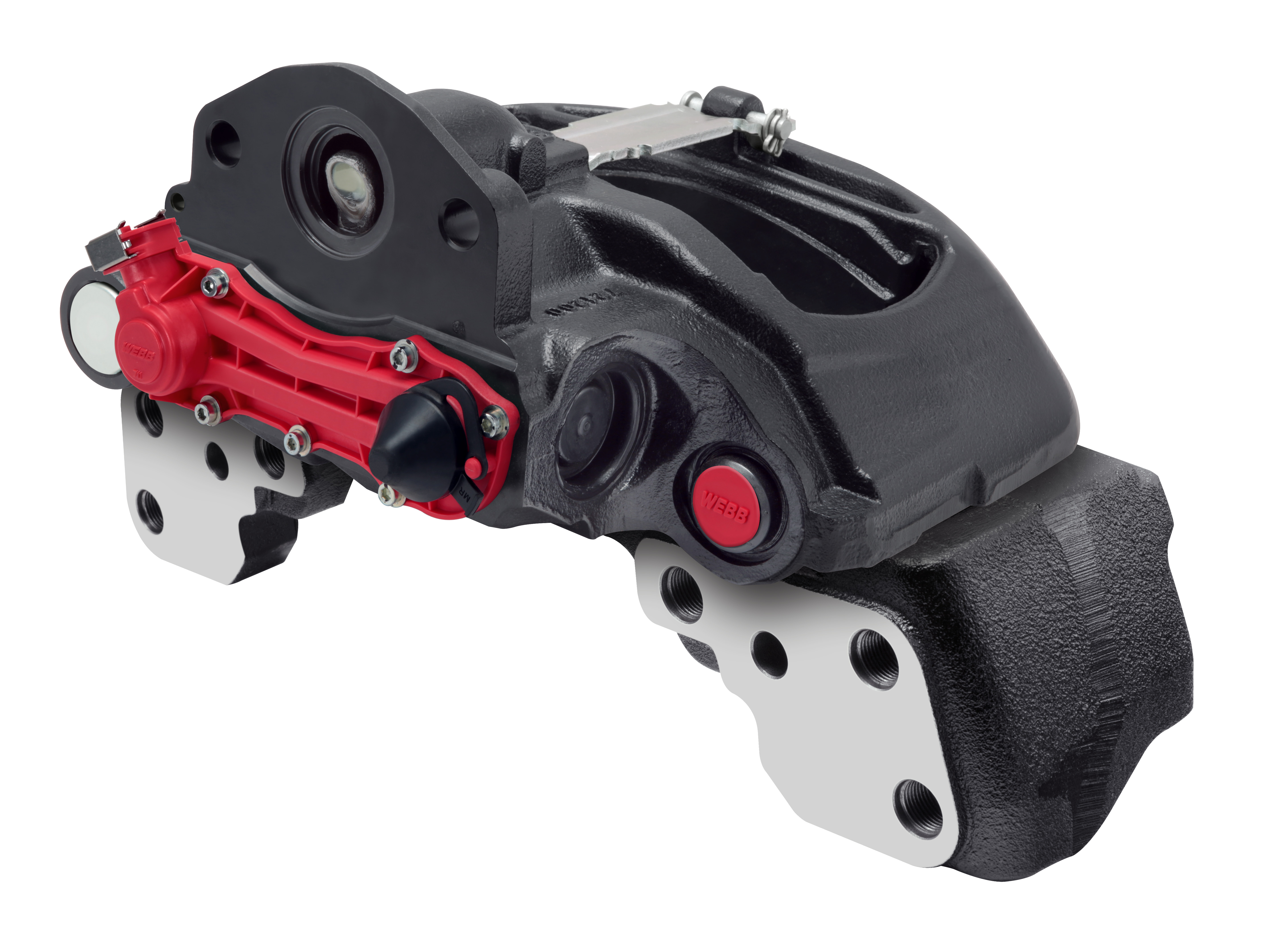

Type: NS225 Model: KL1400A-01
LH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: New Flyer
Webb Caliper/Carrier Assembly Model #: KL1400A-01
Brake Chamber Mounting Angle: 0
Sensor Type: Stepped
Webb Caliper Model #: KL1400A
Webb Carrier Model #: KT1001
Rationalized?: No
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0215


Chain Cover Kit: KS0340

Type: NS225 Model: KR1400A-01
RH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: New Flyer
Webb Caliper/Carrier Assembly Model #: KR1400A-01
Brake Chamber Mounting Angle: 0
Sensor Type: Stepped
Webb Caliper Model #: KR1400A
Webb Carrier Model #: KT1001
Rationalized?: No
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0215


Chain Cover Kit: KS0340

Type: MC225 Model: BL4400-40
LH Long Guide Sleeve
Typically used on standard trailer applications.

PRODUCT INFORMATION
Application: Standard Trailer
Webb Caliper/Carrier Assembly Model #: BL4400-40
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Caliper Model #: BL4400

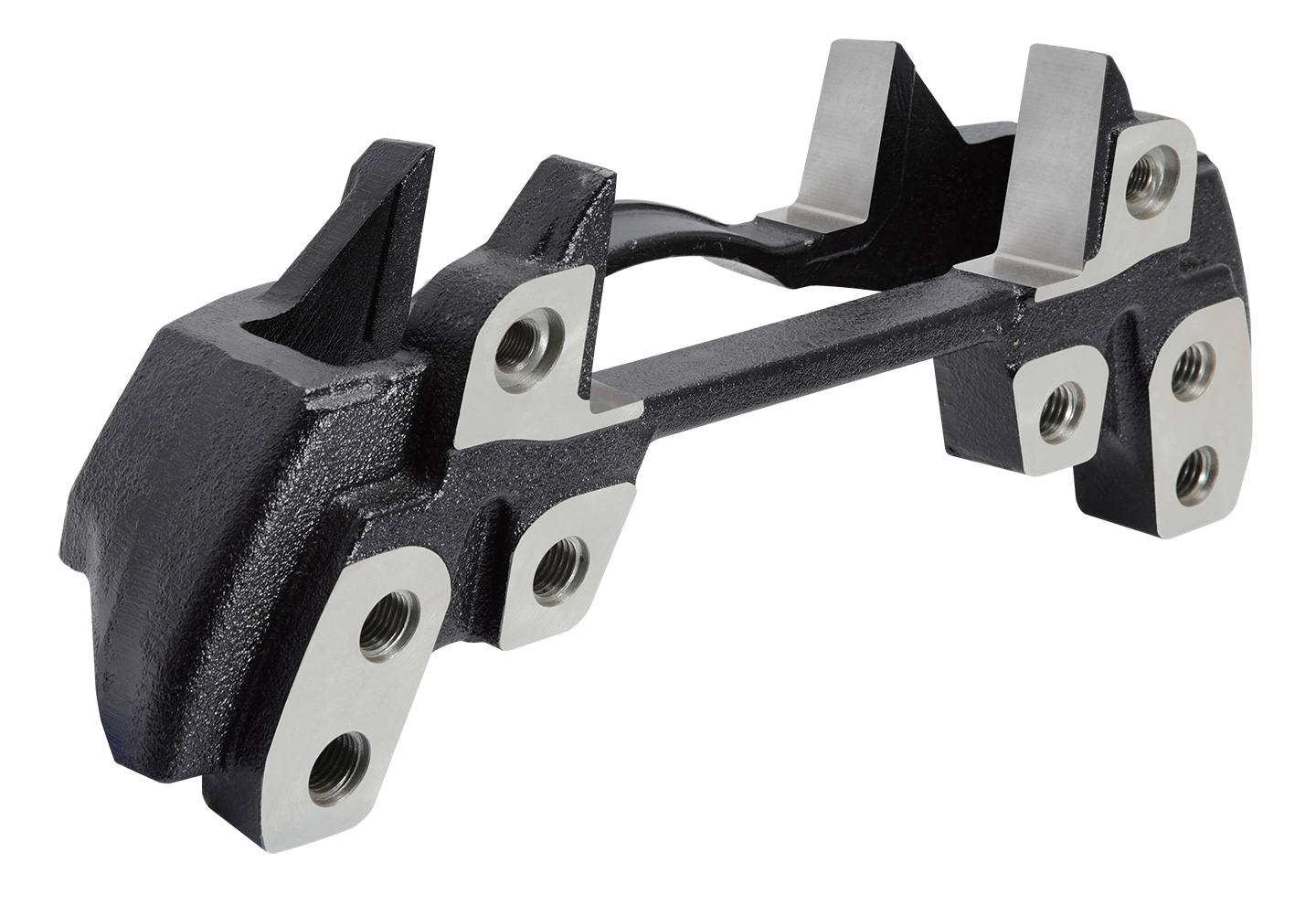

Webb Carrier Model #: BT4040
Rationalized?: No
INSTALLATION KITS INCLUDED

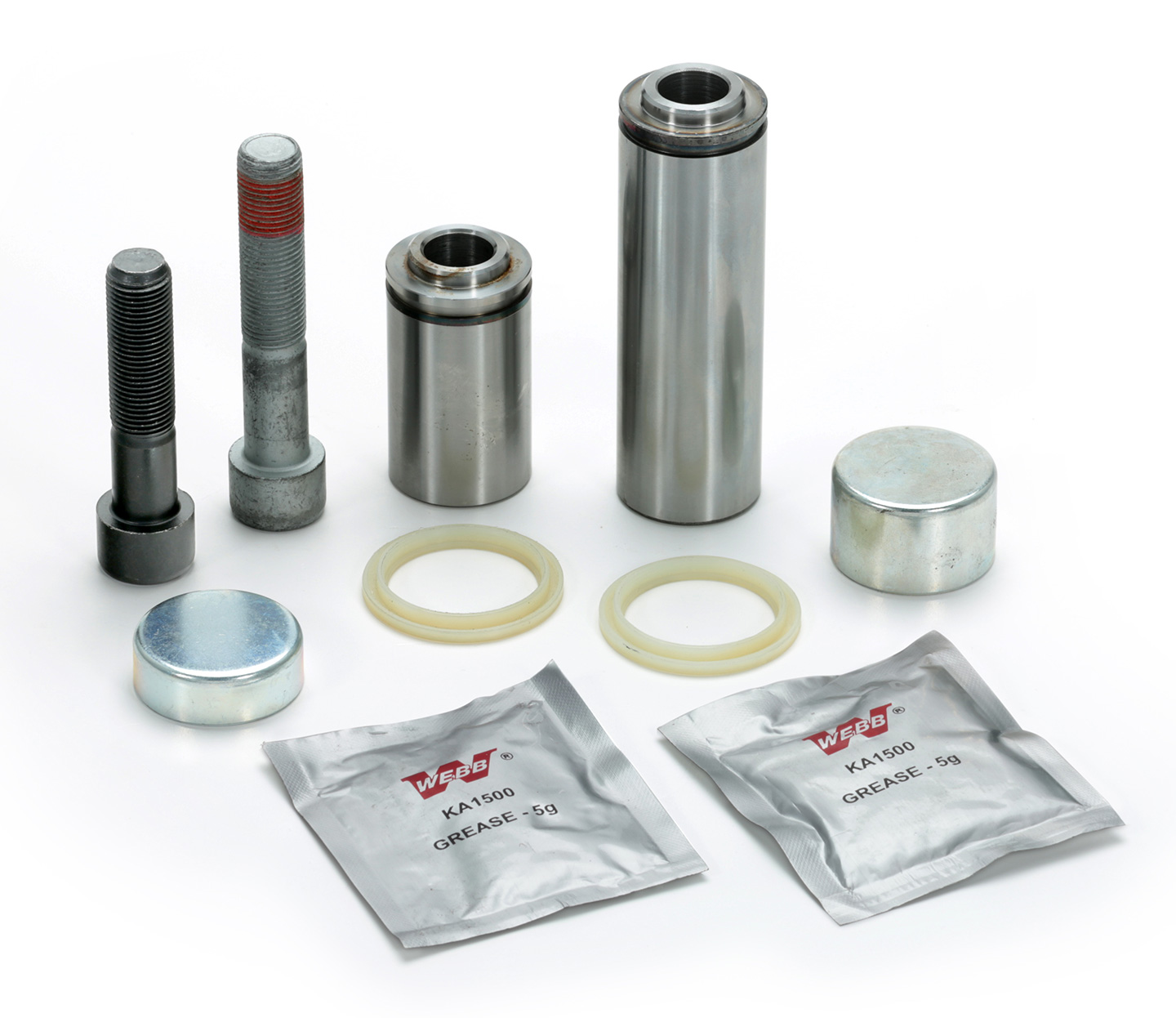

Guide Sleeve Installation Kit

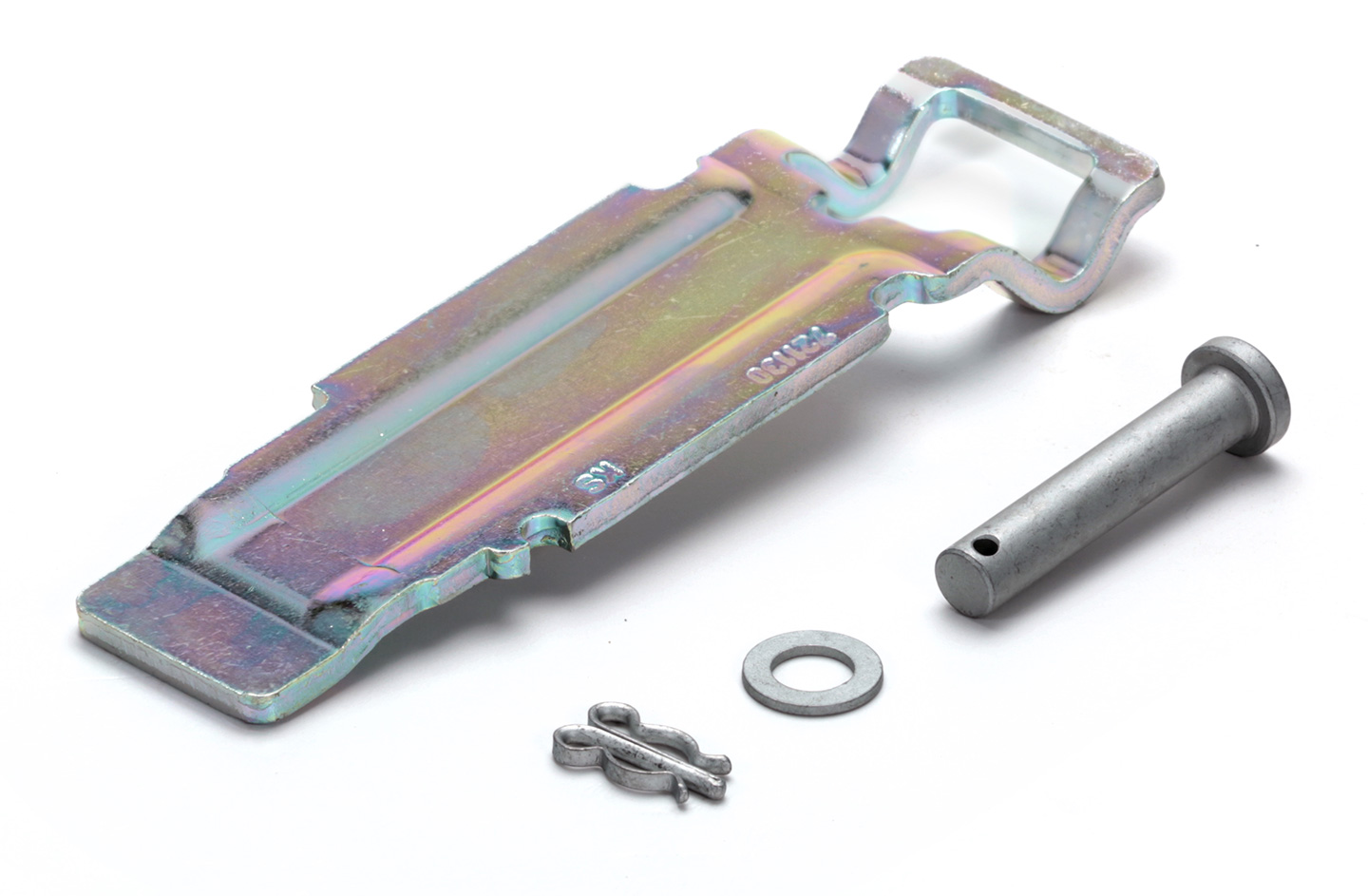

Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400

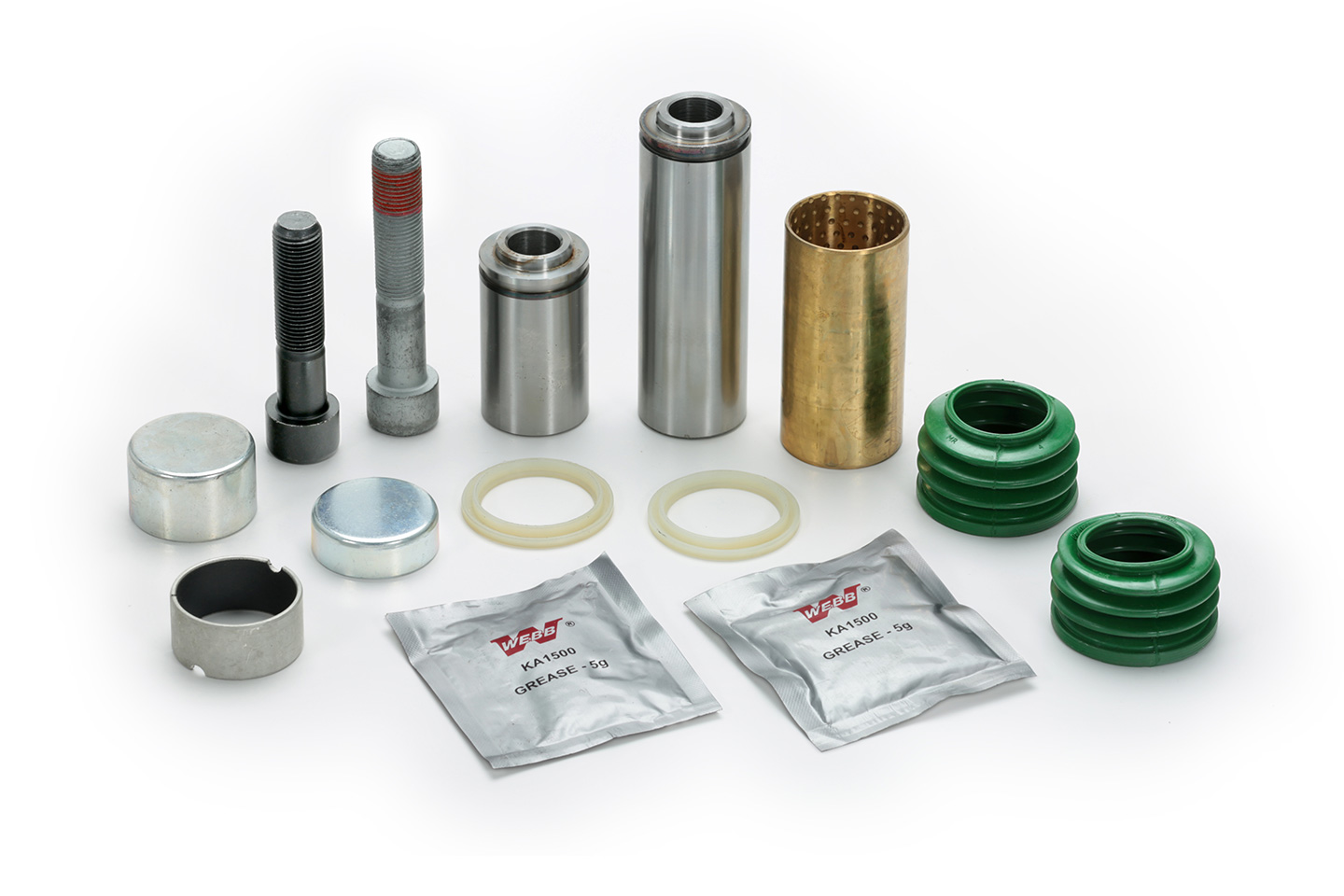

Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

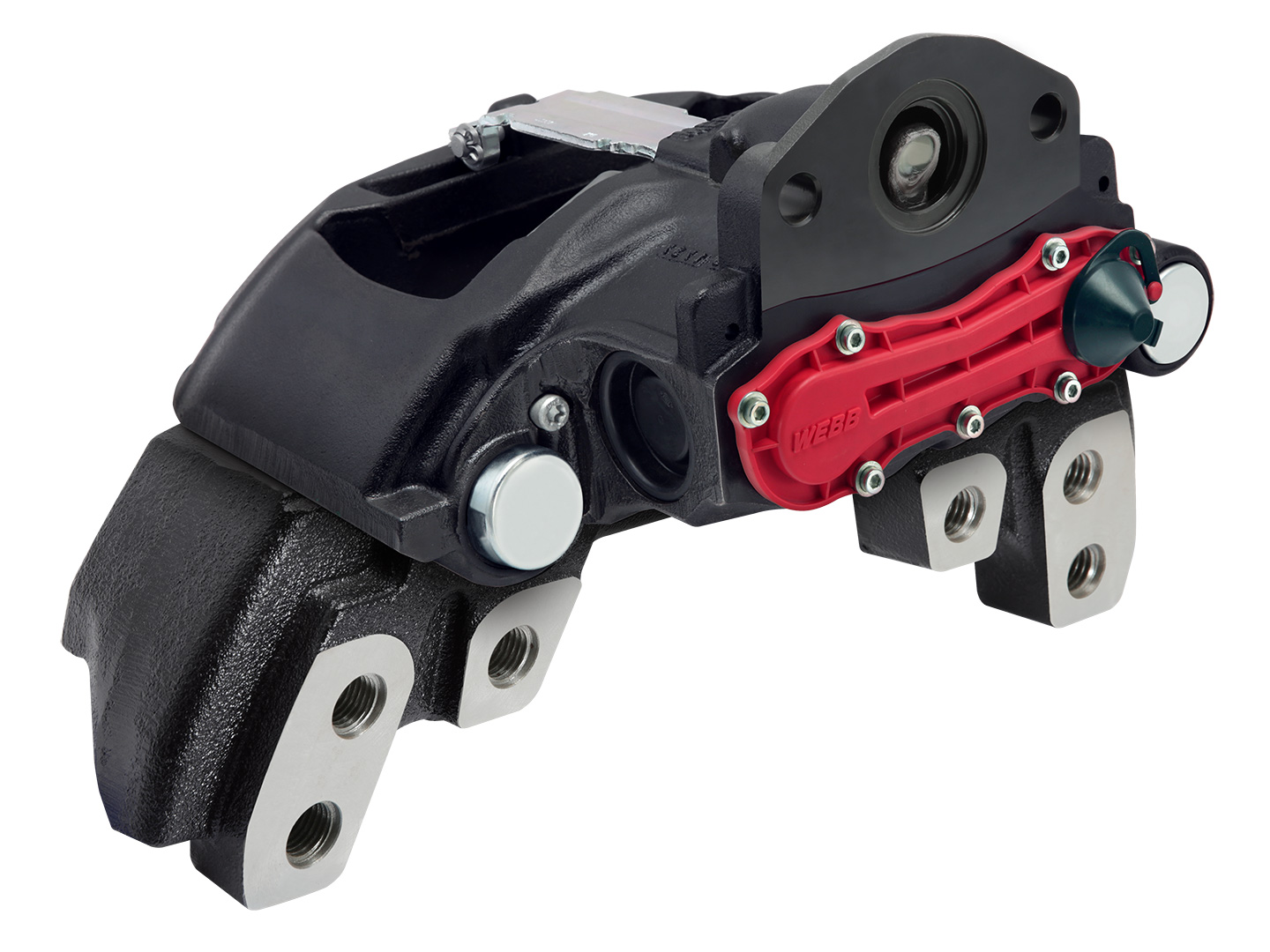

Type: MC225 Model: BR4400-40
RH Long Guide Sleeve
Typically used on standard trailer applications.

PRODUCT INFORMATION
Application: Standard Trailer
Webb Caliper/Carrier Assembly Model #: BR4400-40
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Caliper Model #: BR4400
Webb Carrier Model #: BT4040
Rationalized?: No
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

Type: MC225 Model: BL4700-41
LH Long Guide Sleeve
Typically used on truck applications.

PRODUCT INFORMATION
Application: PACCAR, Volvo, Navistar
Webb Caliper/Carrier Assembly Model #: BL4700-41
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BL4700

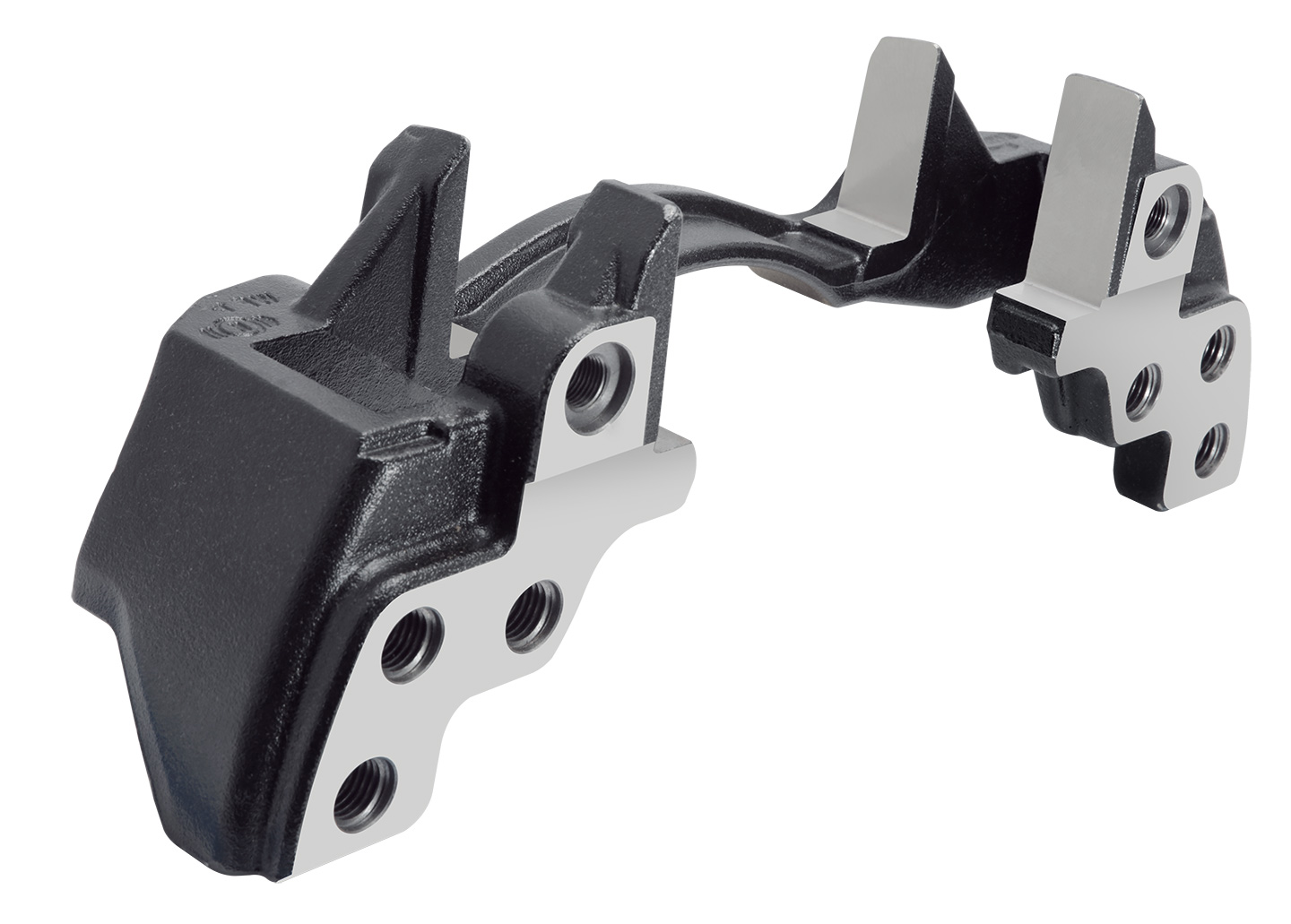

Webb Carrier Model #: BT4041
Rationalized?: No
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

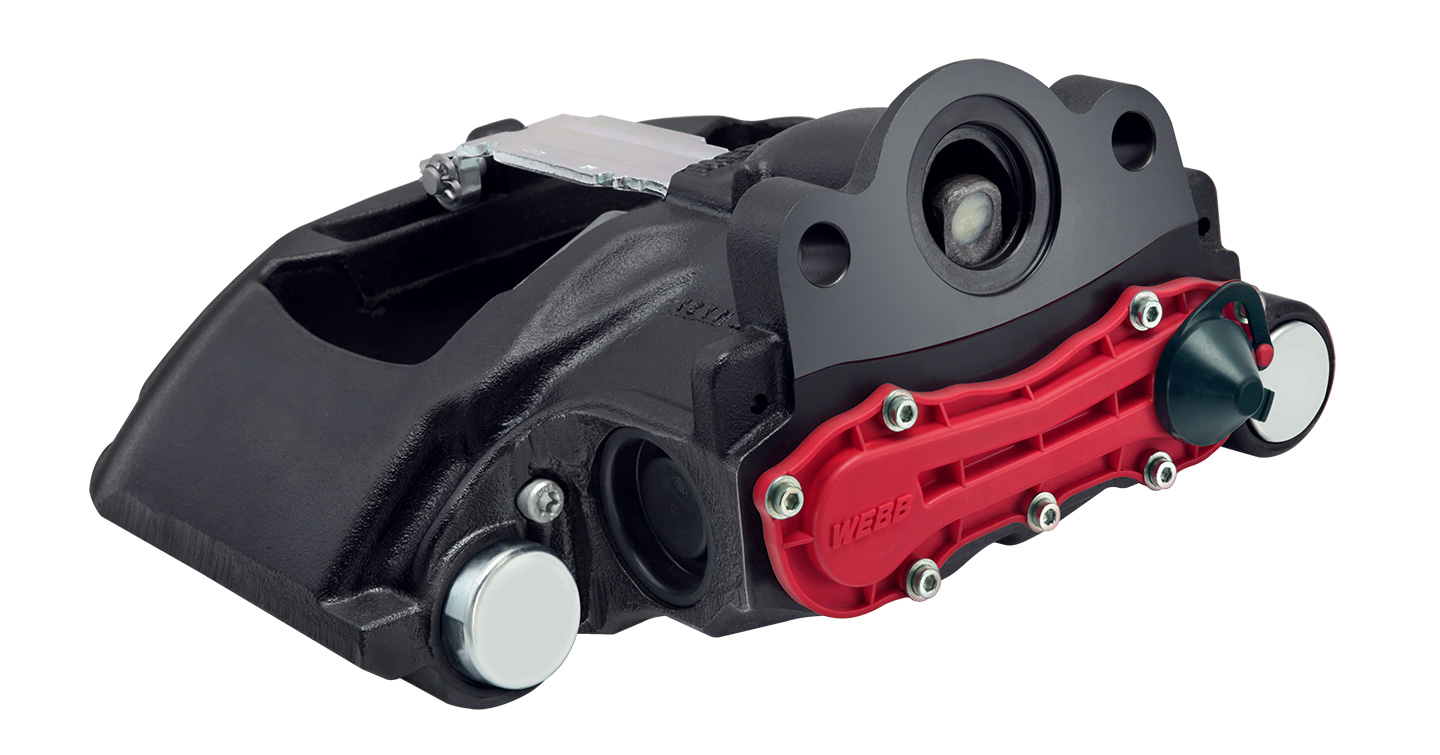

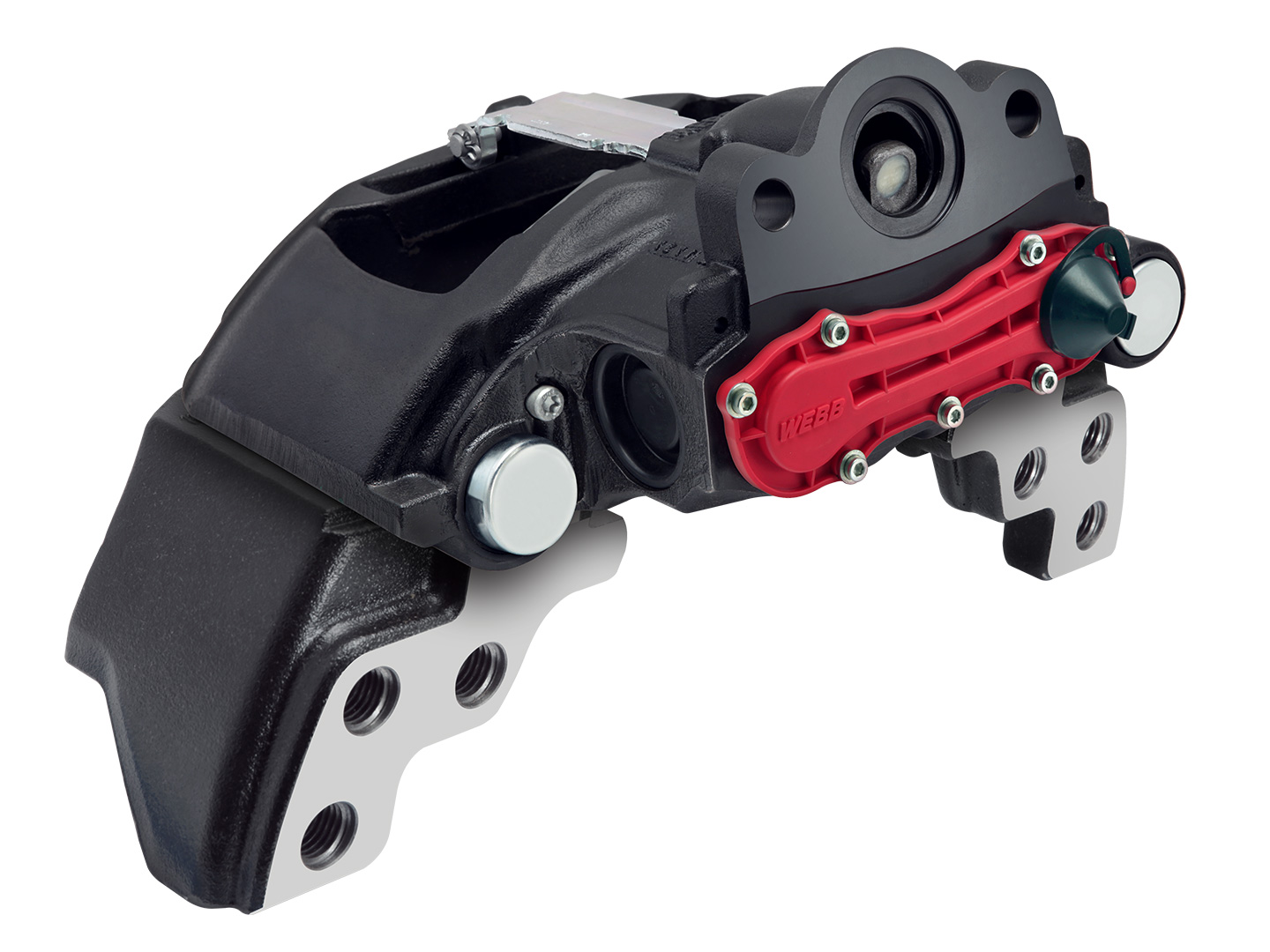

Type: MC225 Model: BR4700-41
RH Long Guide Sleeve
Typically used on truck applications.

PRODUCT INFORMATION
Application: PACCAR, Volvo, Navistar
Webb Caliper/Carrier Assembly Model #: BR4700-41
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BR4700
Webb Carrier Model #: BT4041
Rationalized?: No
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

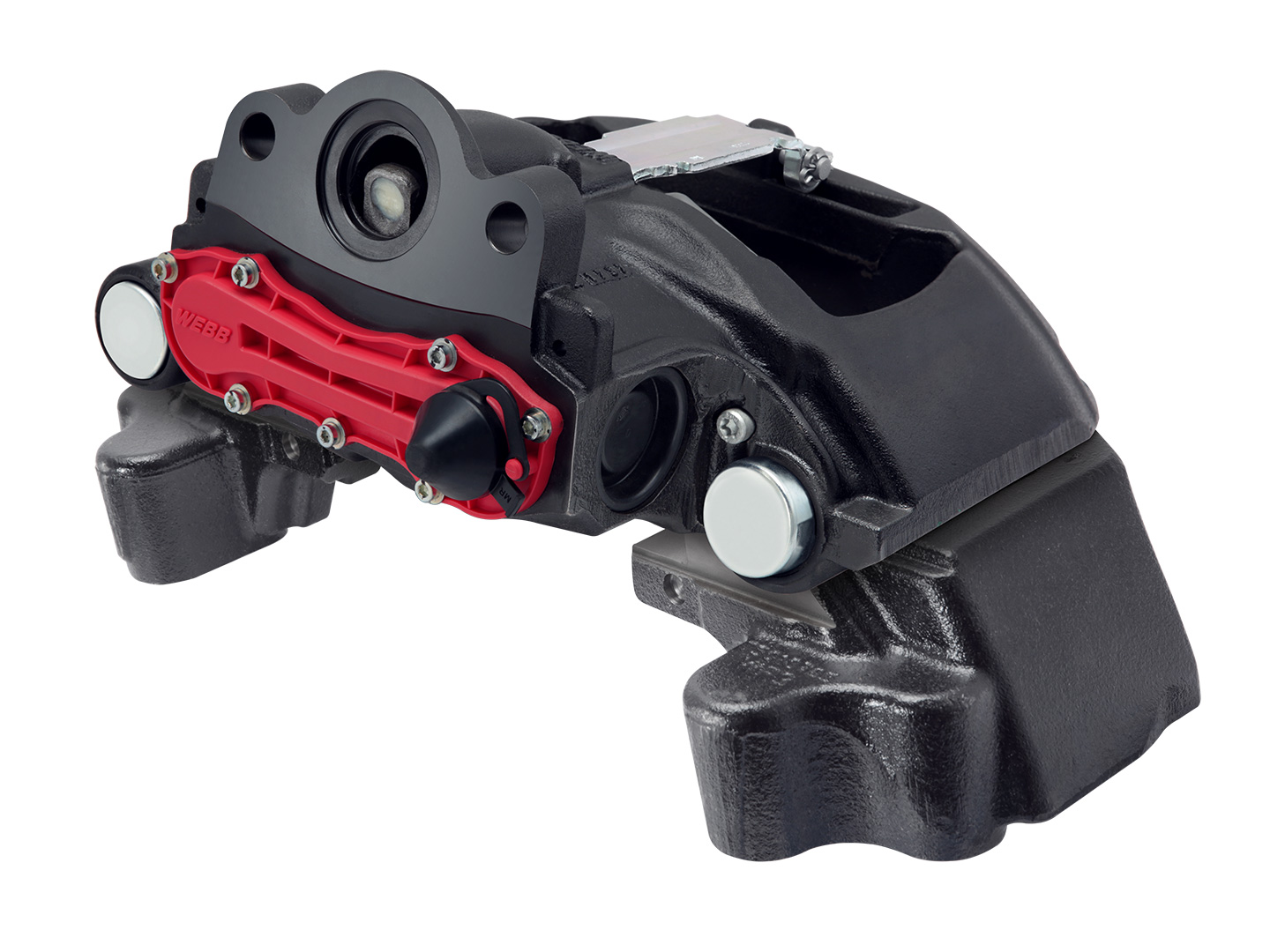

Type: MC225 Model: BL4700-42
LH Long Guide Sleeve
Typically used on truck applications (tangential).

PRODUCT INFORMATION
Application: Freightliner
Webb Caliper/Carrier Assembly Model #: BL4700-42
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BL4700

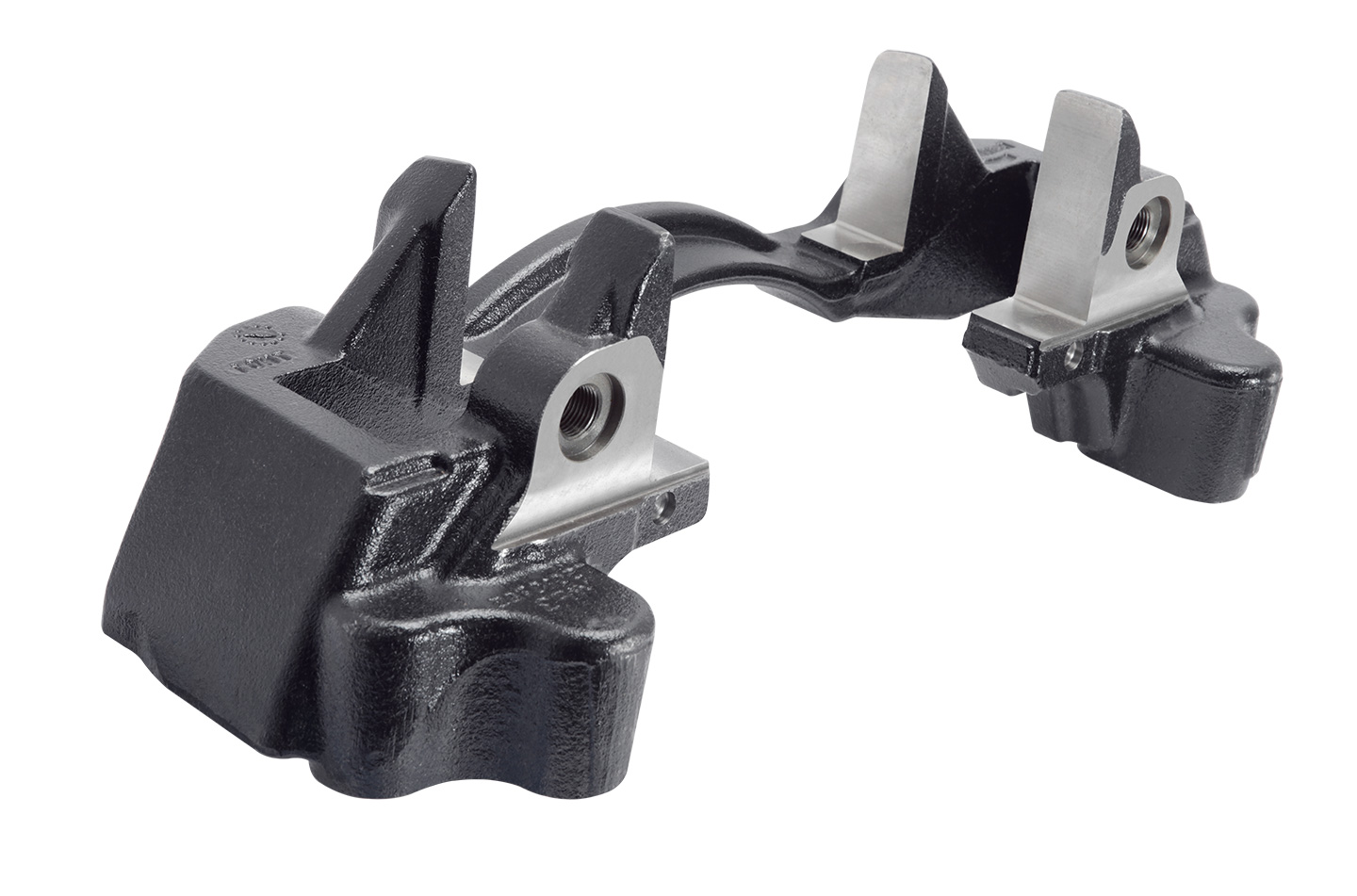

Webb Carrier Model #: BT4042
Rationalized?: No
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

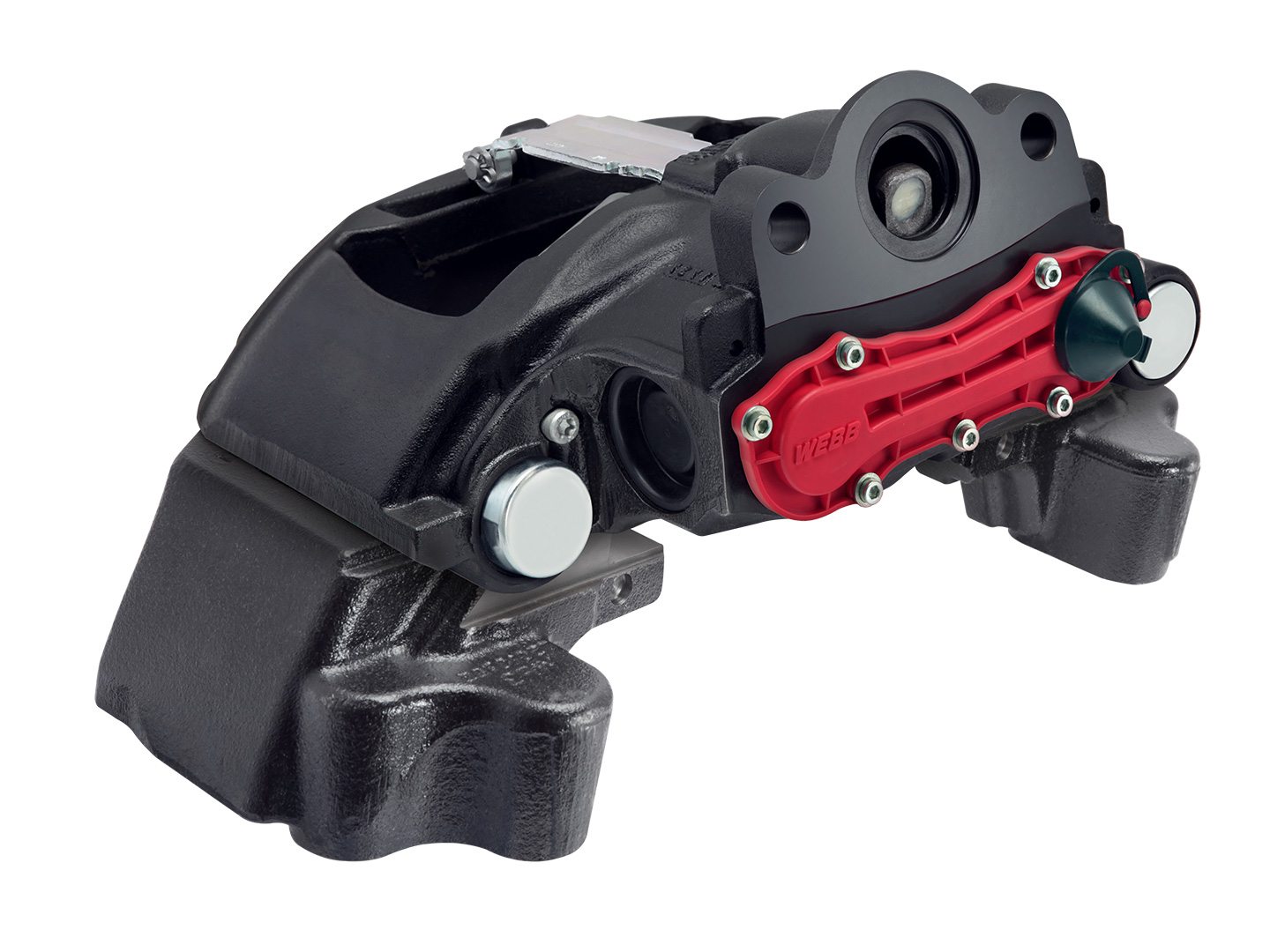

Type: MC225 Model: BR4700-42
RH Long Guide Sleeve
Typically used on truck applications (tangential).

PRODUCT INFORMATION
Application: Freightliner
Webb Caliper/Carrier Assembly Model #: BR4700-42
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BR4700
Webb Carrier Model #: BT4042
Rationalized?: No
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

Type: MC225 Model: BL4700-43
LH Long Guide Sleeve
Typically used on 2015+ MCI Coach & ZF Axles

PRODUCT INFORMATION
Application: 2015+ MCI Coach or ZF Axles
Webb Caliper/Carrier Assembly Model #: BL4700-43
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BL4700

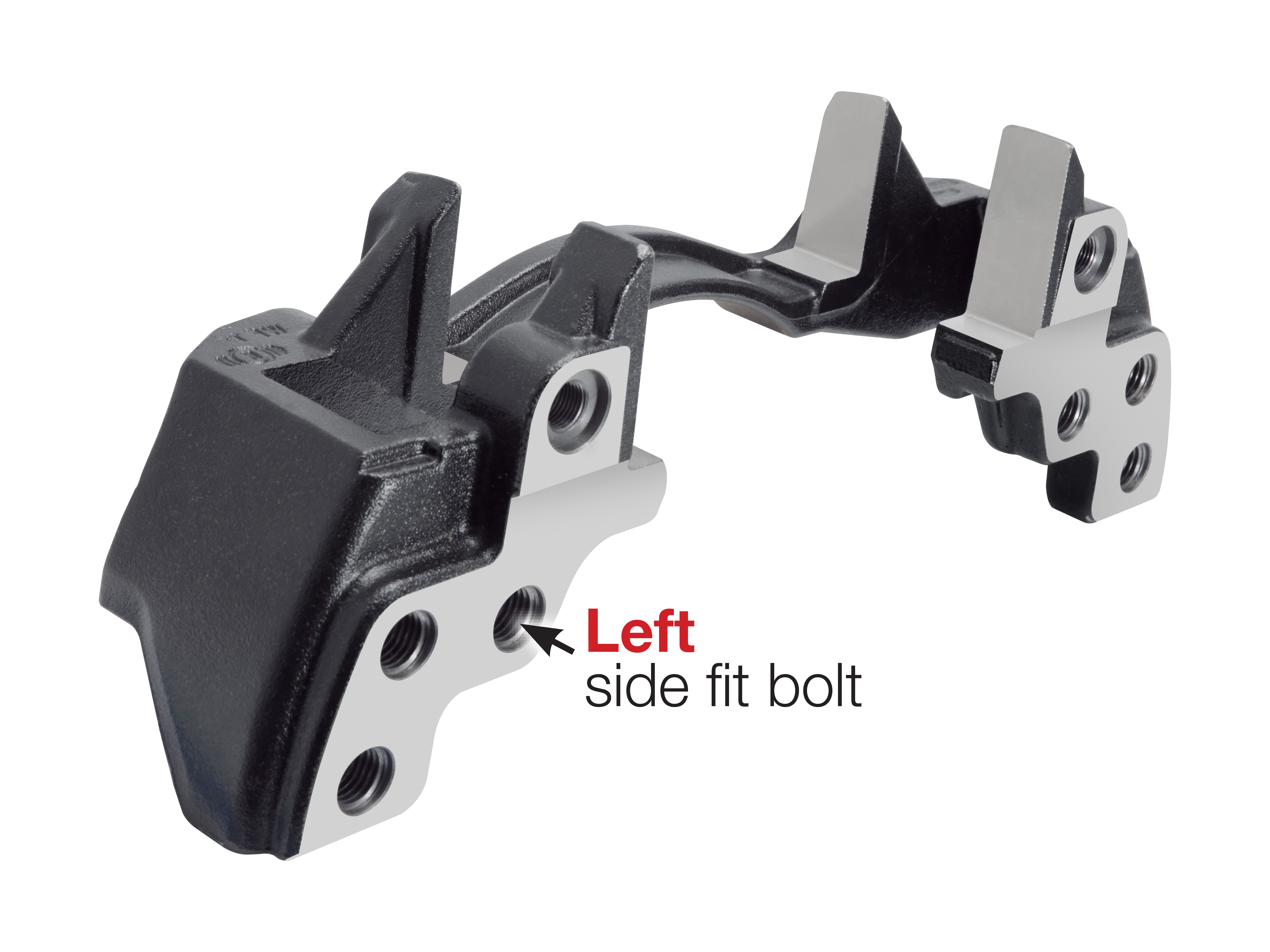

Webb Carrier Model #: BT4043
Rationalized?: No
Note: Left side fit bolt
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

Type: MC225 Model: BR4700-43
RH Long Guide Sleeve
Typically used on 2015+ MCI Coach & ZF Axles

PRODUCT INFORMATION
Application: 2015+ MCI Coach or ZF Axles
Webb Caliper/Carrier Assembly Model #: BR4700-43
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BR4700
Webb Carrier Model #: BT4043
Rationalized?: No
Note: Left side fit bolt
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

Type: MC225 Model: BL4700-44
LH Long Guide Sleeve
Typically used on 2015+ MCI Coach & ZF Axles

PRODUCT INFORMATION
Application: 2015+ MCI Coach or ZF Axles
Webb Caliper/Carrier Assembly Model #: BL4700-44
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BL4700

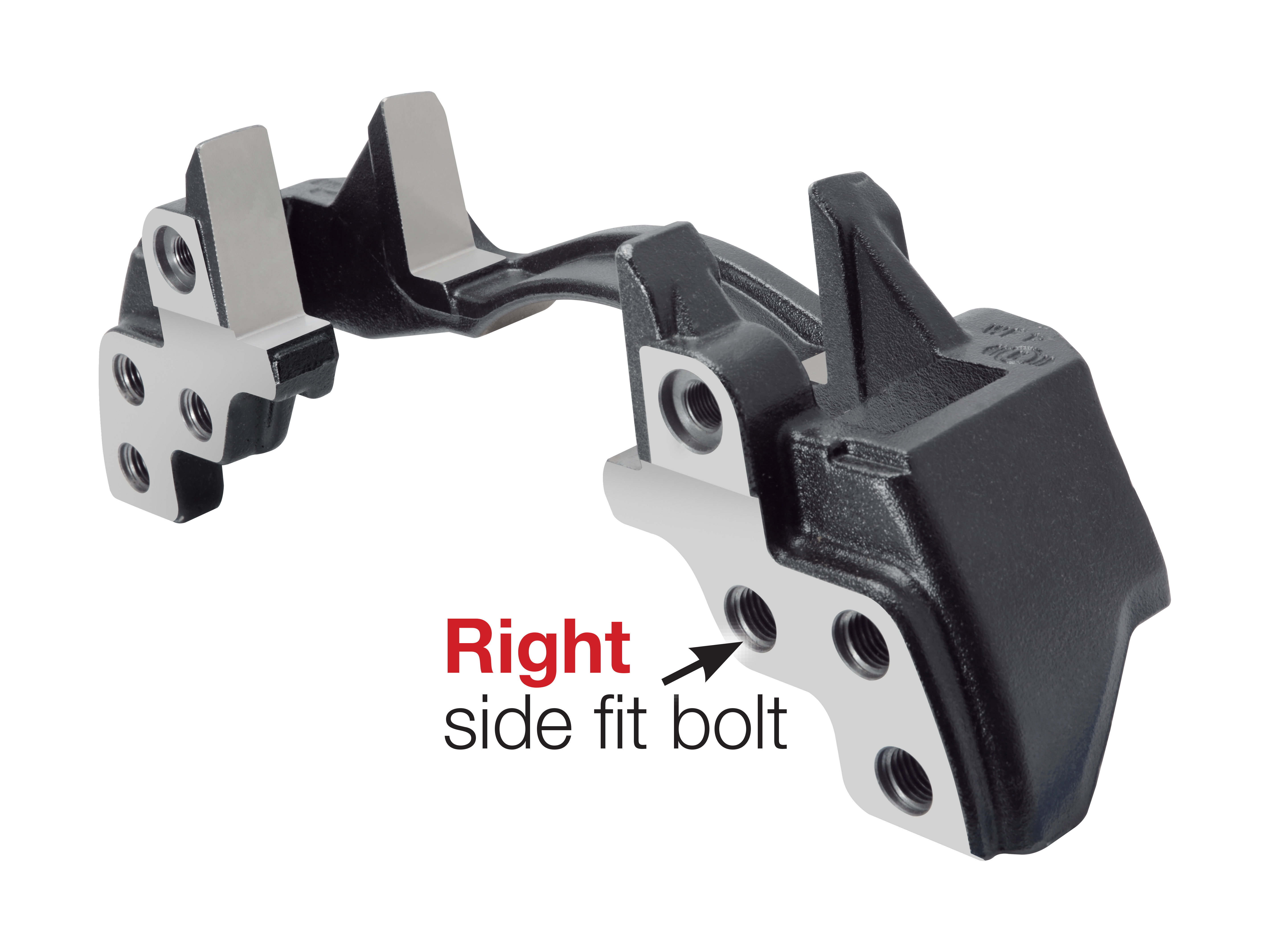

Webb Carrier Model #: BT4044
Rationalized?: No
Note: Right side fit bolt
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

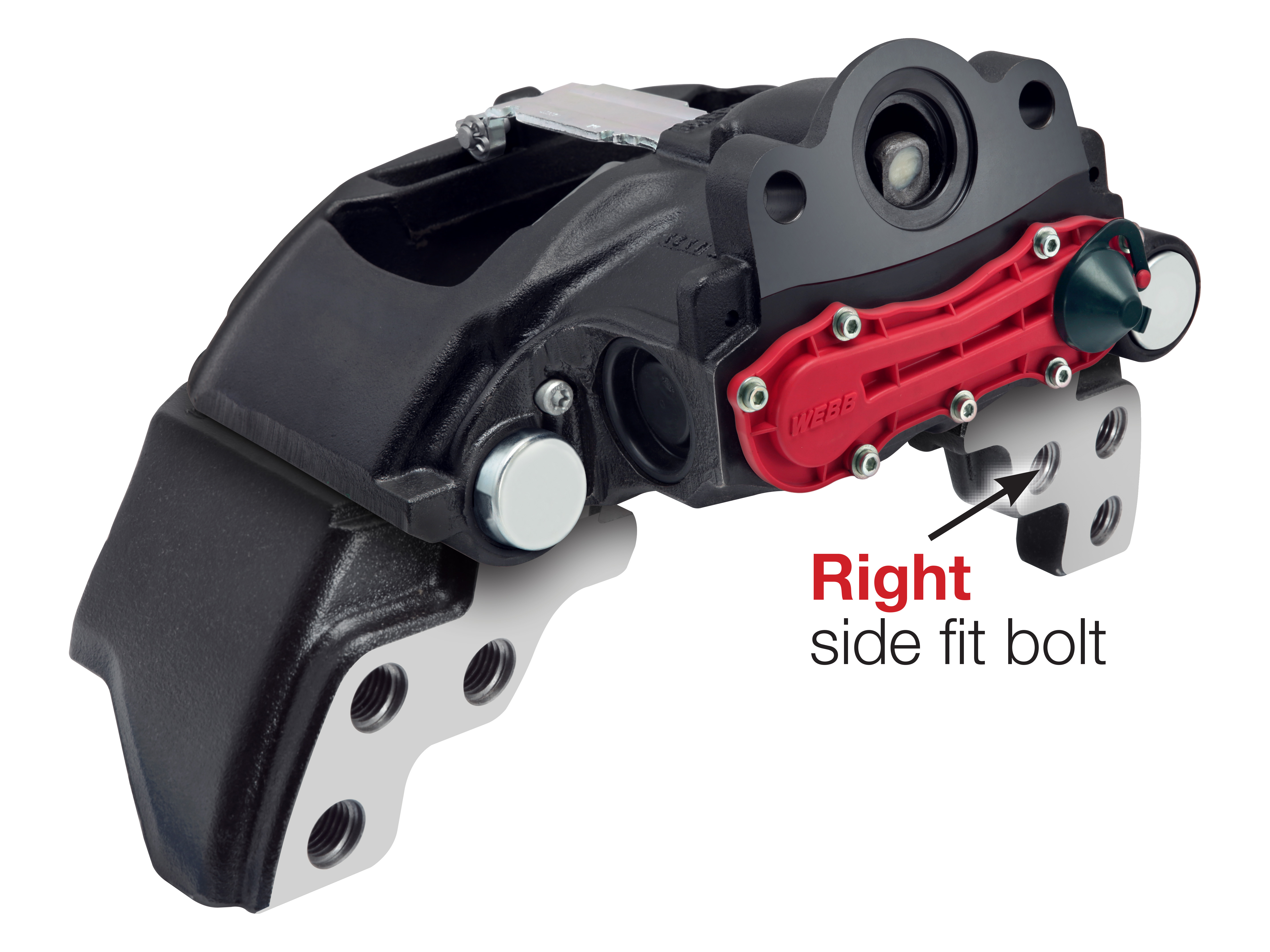

Type: MC225 Model: BR4700-44
RH Long Guide Sleeve
Typically used on 2015+ MCI Coach & ZF Axles

PRODUCT INFORMATION
Application: 2015+ MCI Coach or ZF Axles
Webb Caliper/Carrier Assembly Model #: BR4700-44
Brake Chamber Mounting Angle: 12
Sensor Type: None
Webb Caliper Model #: BR4700
Webb Carrier Model #: BT4044
Rationalized?: No
Note: Right side fit bolt
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300


Calipers

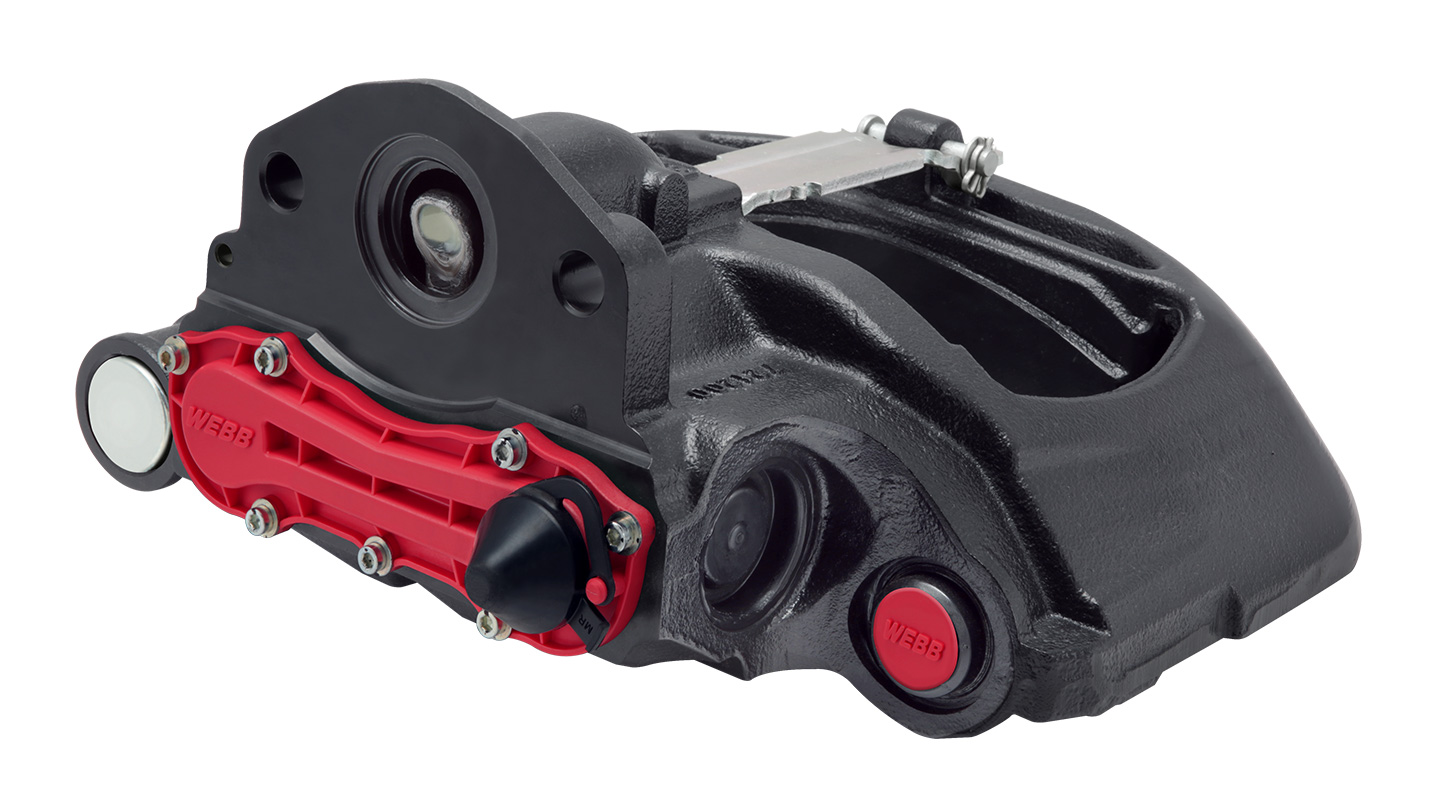

Type: NS225 Model: KL1400
LH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: Van Hool / New Flyer
Webb Caliper Model #: KL1400
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Carrier Model #: KT1001
Rationalized?: Yes
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0215


Chain Cover Kit: KS0300

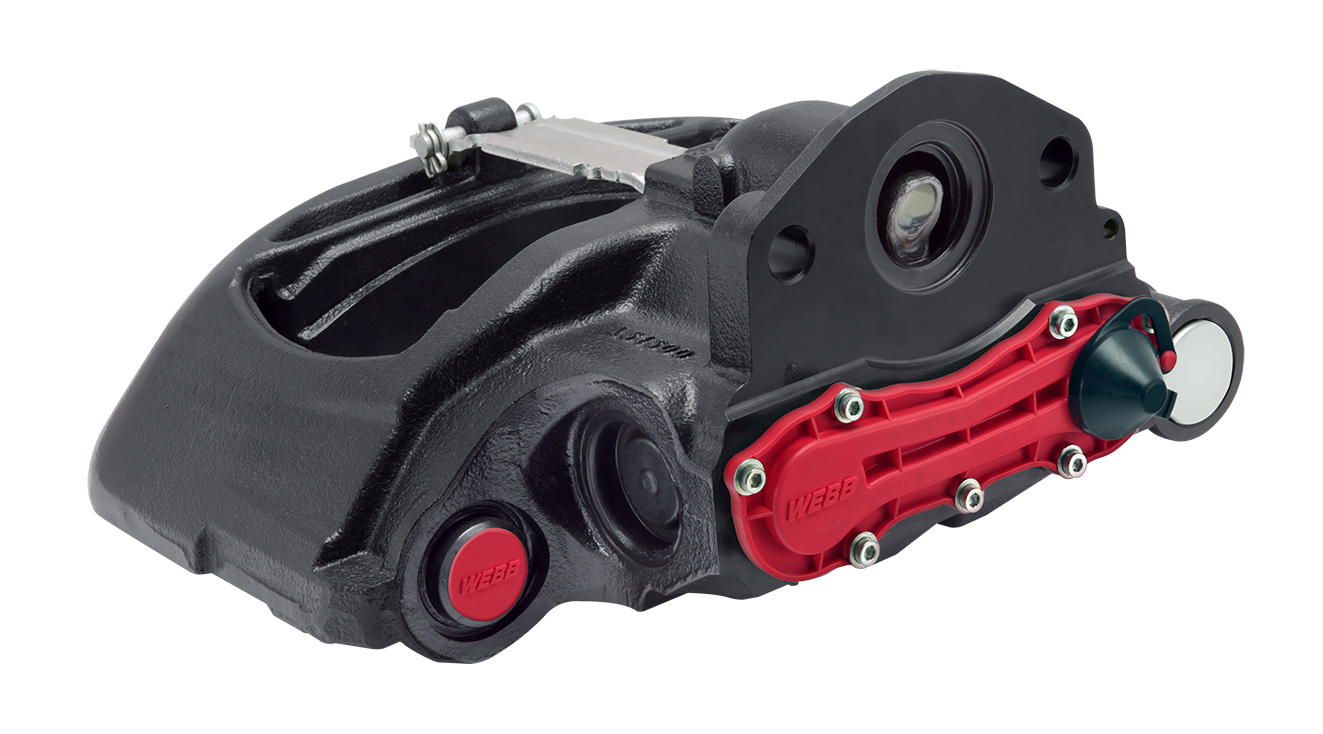

Type: NS225 Model: KR1400
RH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: Van Hool / New Flyer
Webb Caliper Model #: KR1400
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Carrier Model #: KT1001
Rationalized?: Yes
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0215


Chain Cover Kit: KS0300

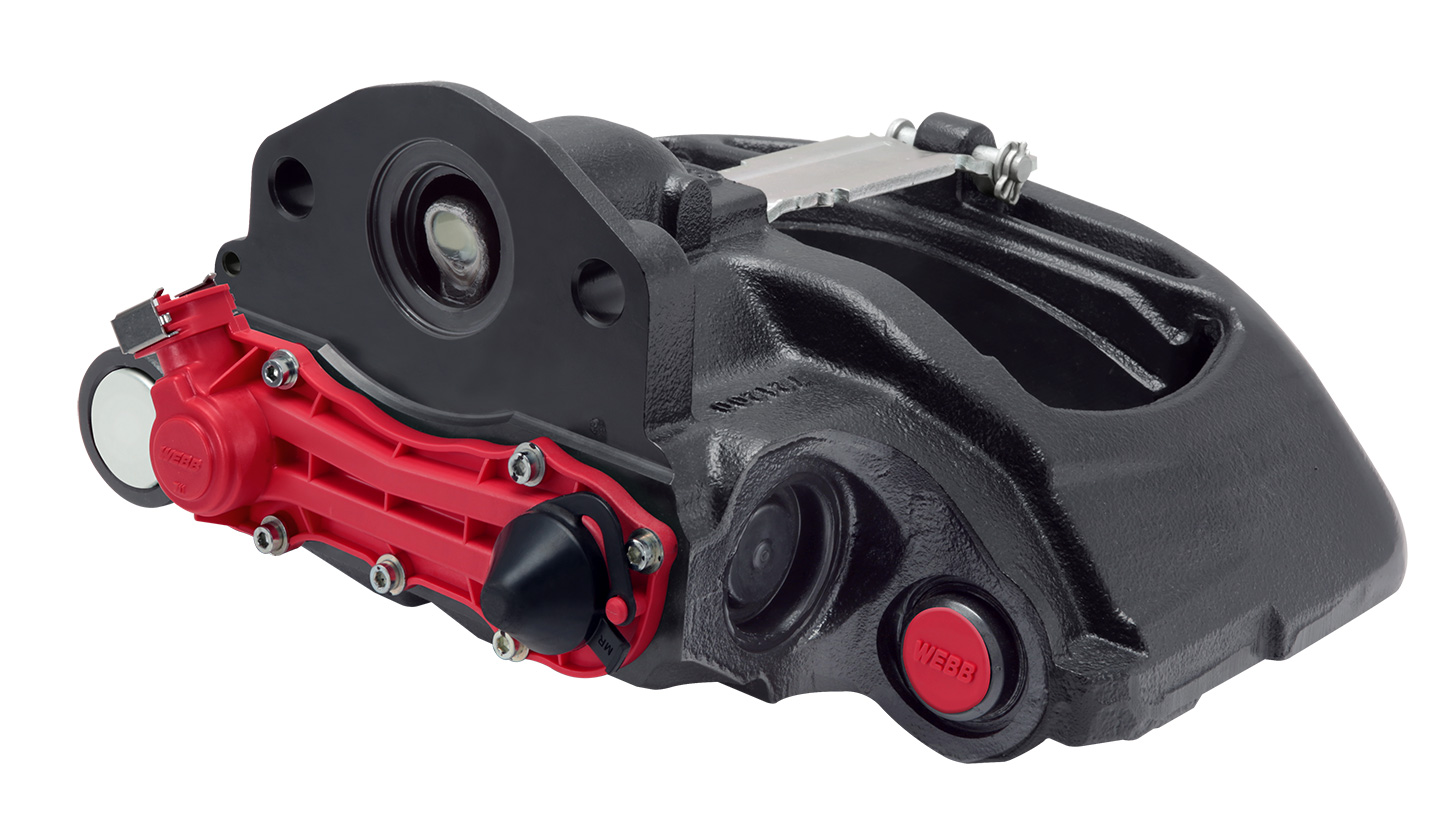

Type: NS225 Model: KL1400A
LH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: New Flyer
Webb Caliper Model #: KL1400A
Brake Chamber Mounting Angle: 0
Sensor Type: Stepped
Webb Carrier Model #: KT1001
Rationalized?: Yes
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0215


Chain Cover Kit: KS0340

Type: NS225 Model: KR1400A
RH Long Guide Sleeve
Typically used on transit buses and other specialized applications.

PRODUCT INFORMATION
Application: New Flyer
Webb Caliper Model #: KR1400A
Brake Chamber Mounting Angle: 0
Sensor Type: Stepped
Webb Carrier Model #: KT1001
Rationalized?: Yes
Note: Guide sleeve kit is KS0215 for recent models. Some older caliper designs use kit KS0200. If you are unsure what guide sleeve kit to order contact Webb Wheel Products.
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit


Pad Wear Indicator Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0215


Chain Cover Kit: KS0340

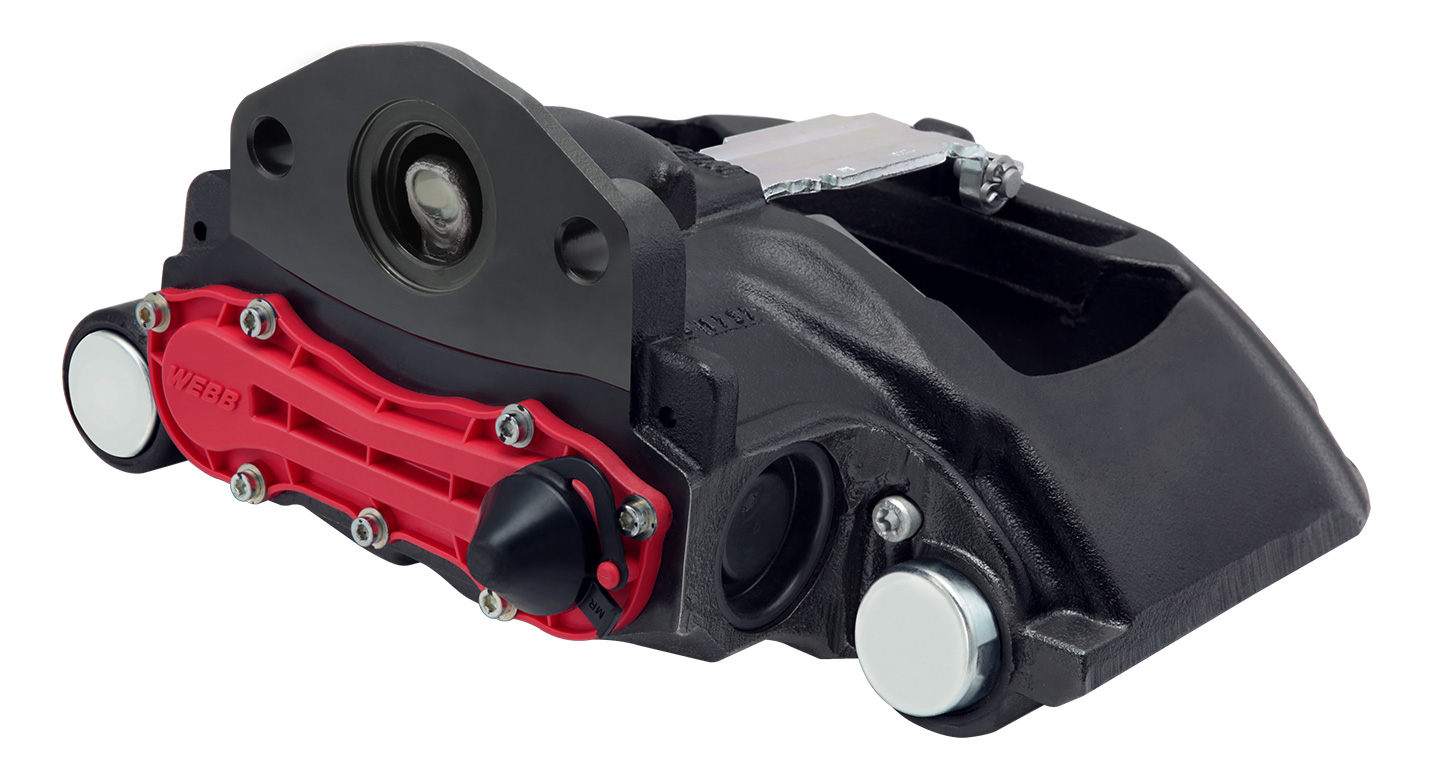

Type: MC225 Model: BL4400
LH Long Guide Sleeve
Typically used on standard trailer applications.

PRODUCT INFORMATION
Application: Standard Trailer
Webb Caliper Model #: BL4400
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Carrier Model #: BT4040
Rationalized?: Yes
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

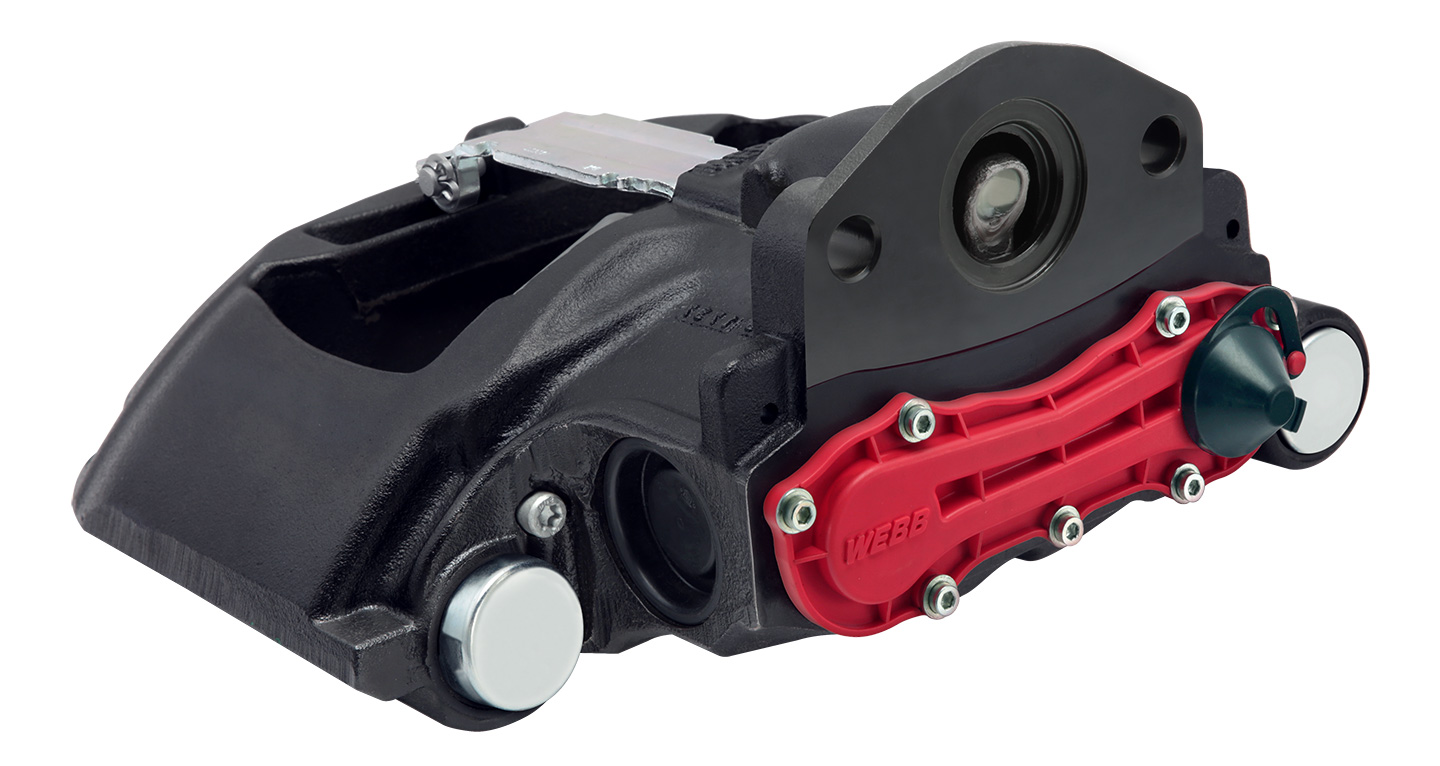

Type: MC225 Model: BR4400
RH Long Guide Sleeve
Typically used on standard trailer applications.

PRODUCT INFORMATION
Application: Standard Trailer
Webb Caliper Model #: BR4400
Brake Chamber Mounting Angle: 0
Sensor Type: None
Webb Carrier Model #: BT4040
Rationalized?: Yes
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

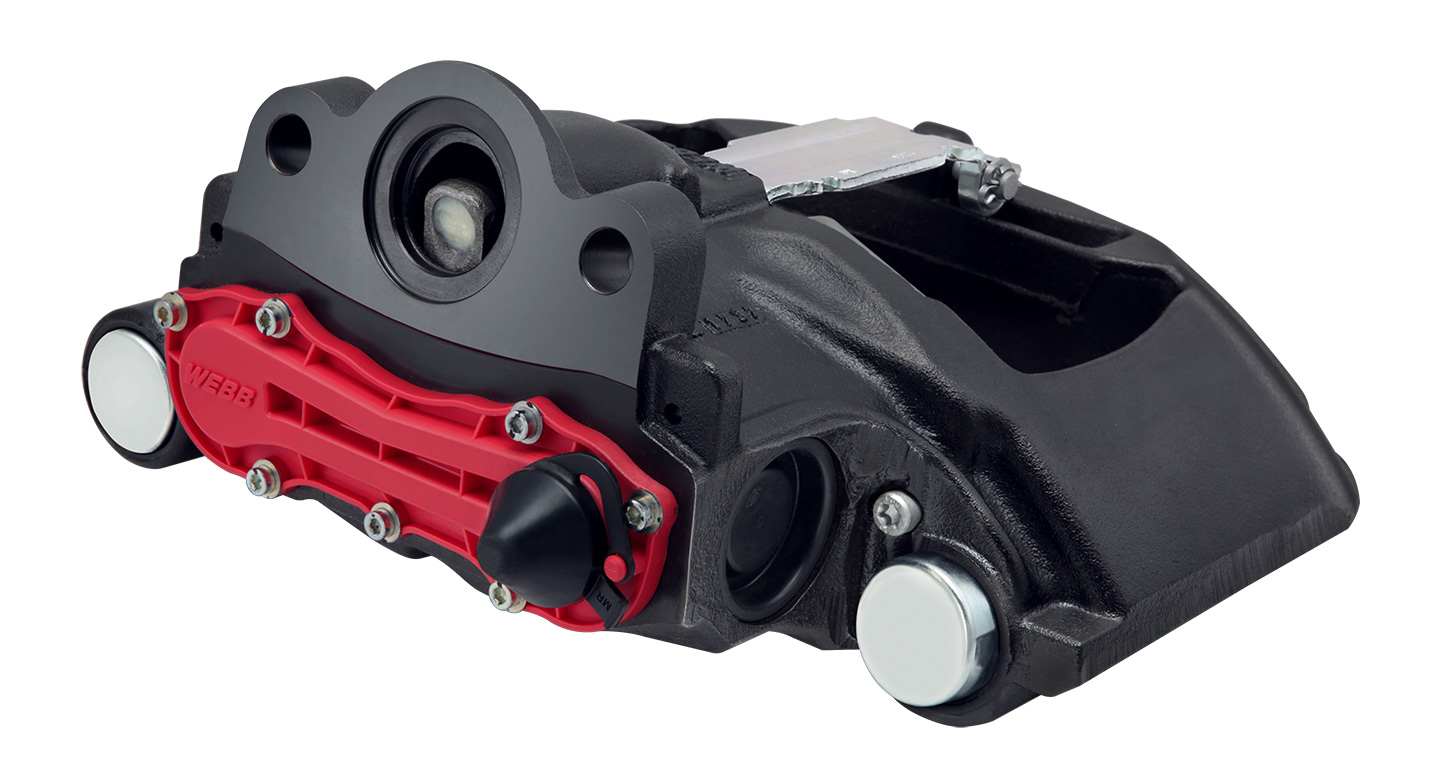

Type: MC225 Model: BL4700
LH Long Guide Sleeve
Typically used on truck applications.

PRODUCT INFORMATION
Application: PACCAR, Volvo, Navistar, Freightliner
Webb Caliper Model #: BL4700
Brake Chamber Mounting Angle: 12
Sensor Type: None

Application 1: PACCAR, Volvo, Navistar
Webb Carrier Model # 1: BT4041

Application 2: Freightliner
Webb Carrier Model # 2: BT4042

Rationalized?: Yes
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300

Type: MC225 Model: BR4700
RH Long Guide Sleeve
Typically used on truck applications.

PRODUCT INFORMATION
Application: PACCAR, Volvo, Navistar, Freightliner
Webb Caliper Model #: BR4700
Brake Chamber Mounting Angle: 12
Sensor Type: None

Application 1: PACCAR, Volvo, Navistar
Webb Carrier Model # 1: BT4041

Application 2: Freightliner
Webb Carrier Model # 2: BT4042

Rationalized?: Yes
INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit


Pad Retainer Installation Kit
AVAILABLE REPAIR KITS

Tappet Boot Kit : KS0400


Guide Sleeve Kit: KS0205


Chain Cover Kit: KS0300


Carriers

Model: KT1001

Typically used on transit buses and other specialized applications.

INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit
PRODUCT INFORMATION
Application: Van Hool / New Flyer
Webb Carrier Model #: KT1001
Works with these Webb calipers types: NS225
Rationalized?: N/A
Note: Axial Mount Carrier for KL1400, KR1400, KL1400A & KR1400A Calipers


Model: BT4040

Typically used on standard trailer applications.

INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit
PRODUCT INFORMATION
Application: Standard Trailer
Webb Carrier Model #: BT4040
Works with these Webb calipers types: MC225
Rationalized?: N/A
Note: Axial Mount Carrier for BL4400 & BR4400 Caliper


Model: BT4041

Typically used on truck applications.

INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit
PRODUCT INFORMATION
Application: PACCAR, Volvo, Navistar
Webb Carrier Model #: BT4041
Works with these Webb calipers types: MC225
Rationalized?: N/A
Note: Axial Mount Carrier for BL4700 & BR4700 Caliper (Navistar, Paccar, Volvo)


Model: BT4042

Typically used on truck applications (tangential).

INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit
PRODUCT INFORMATION
Application: Freightliner
Webb Carrier Model #: BT4042
Works with these Webb calipers types: MC225
Rationalized?: N/A
Note: Tangential Mount for Carrier for BL4700 & BR4700 Caliper (Freightliner)


Model: BT4043

Typically used on 2015+ MCI Coach & ZF Axles

INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit
PRODUCT INFORMATION
Application: 2015+ MCI Coach or ZF Axles
Webb Carrier Model #: BT4043
Works with these Webb calipers types: MC225
Rationalized?: N/A
Note: Axial Mount for Carrier BL4700 & BR4700 Caliper MCI/ZF Axle - LH Fit Bolt


Model: BT4044

Typically used on 2015+ MCI Coach & ZF Axles

INSTALLATION KITS INCLUDED

Guide Sleeve Installation Kit
PRODUCT INFORMATION
Application: 2015+ MCI Coach or ZF Axles
Webb Carrier Model #: BT4044
Works with these Webb calipers types: MC225
Rationalized?: N/A
Note: Axial Mount for Carrier BL4700 & BR4700 Caliper MCI/ZF Axle - RH Fit Bolt



Caliper Repair Parts

Model: KS0215

PRODUCT INFORMATIONKit Part #: KS0215
Repair Part Description: Guide Sleeve Kit
Works with these Webb calipers: KL1400-01, KR1400-01, KL1400, KR1400, KL1400A-01, KR1400A-01, KL1400A, KR1400A

Model: KS0205

PRODUCT INFORMATIONKit Part #: KS0205
Repair Part Description: Guide Sleeve Kit
Works with these Webb calipers: BL4400-40, BR4400-40, BL4400, BR4400, BL4700-41, BR4700-41, BL4700, BR4700, BL4700-41, BR4700-41

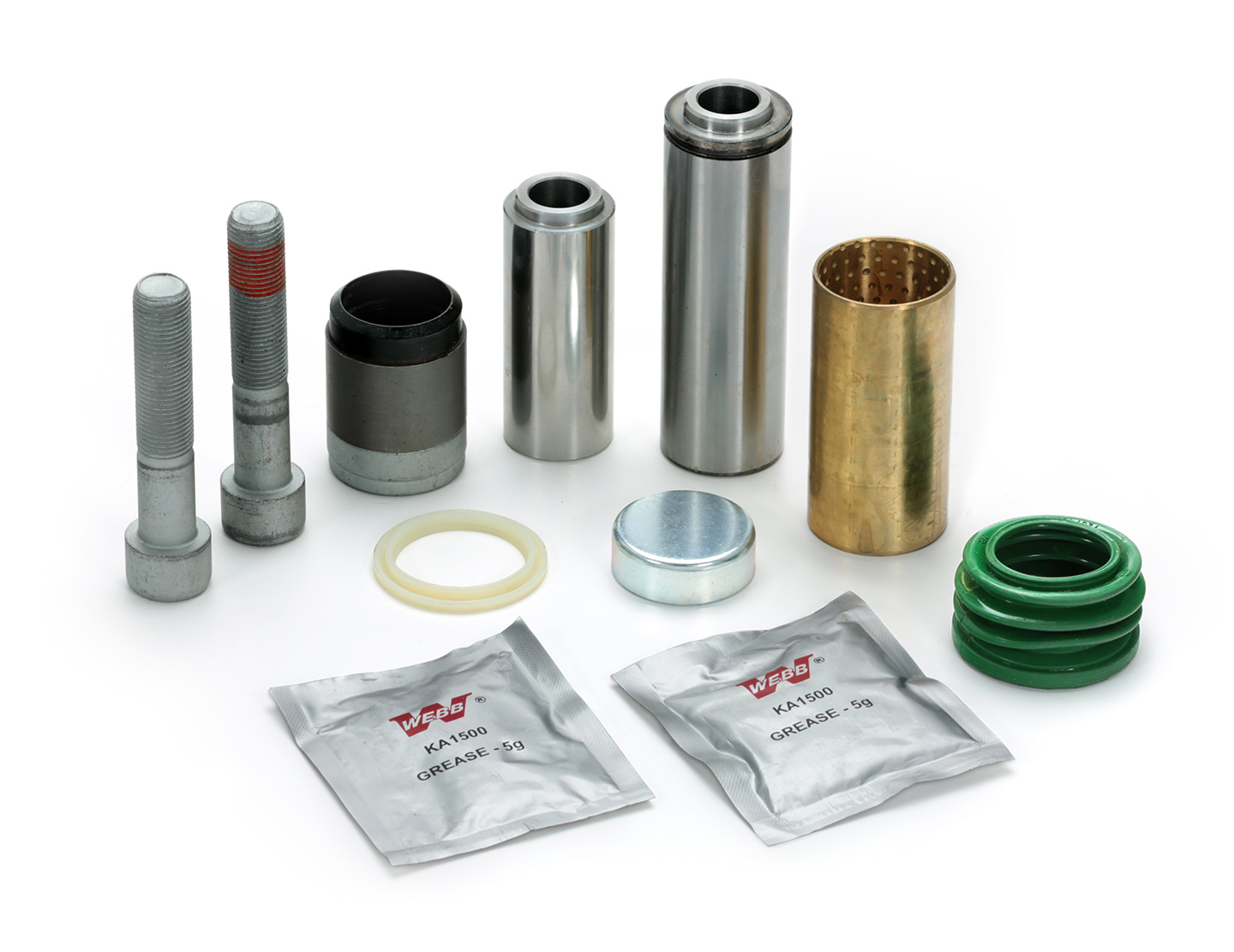

Model: KS0200

PRODUCT INFORMATIONKit Part #: KS0200
Repair Part Description: Guide Sleeve Kit (Pre-2019)
Works with these Webb calipers: BL4400-40, BR4400-40, BL4400, BR4400, BL4700-41, BR4700-41, BL4700, BR4700, BL4700-41, BR4700-41

Model: KS0400

PRODUCT INFORMATIONKit Part #: KS0400
Repair Part Description: Tappet Boot Kit
Works with these Webb calipers: All Models

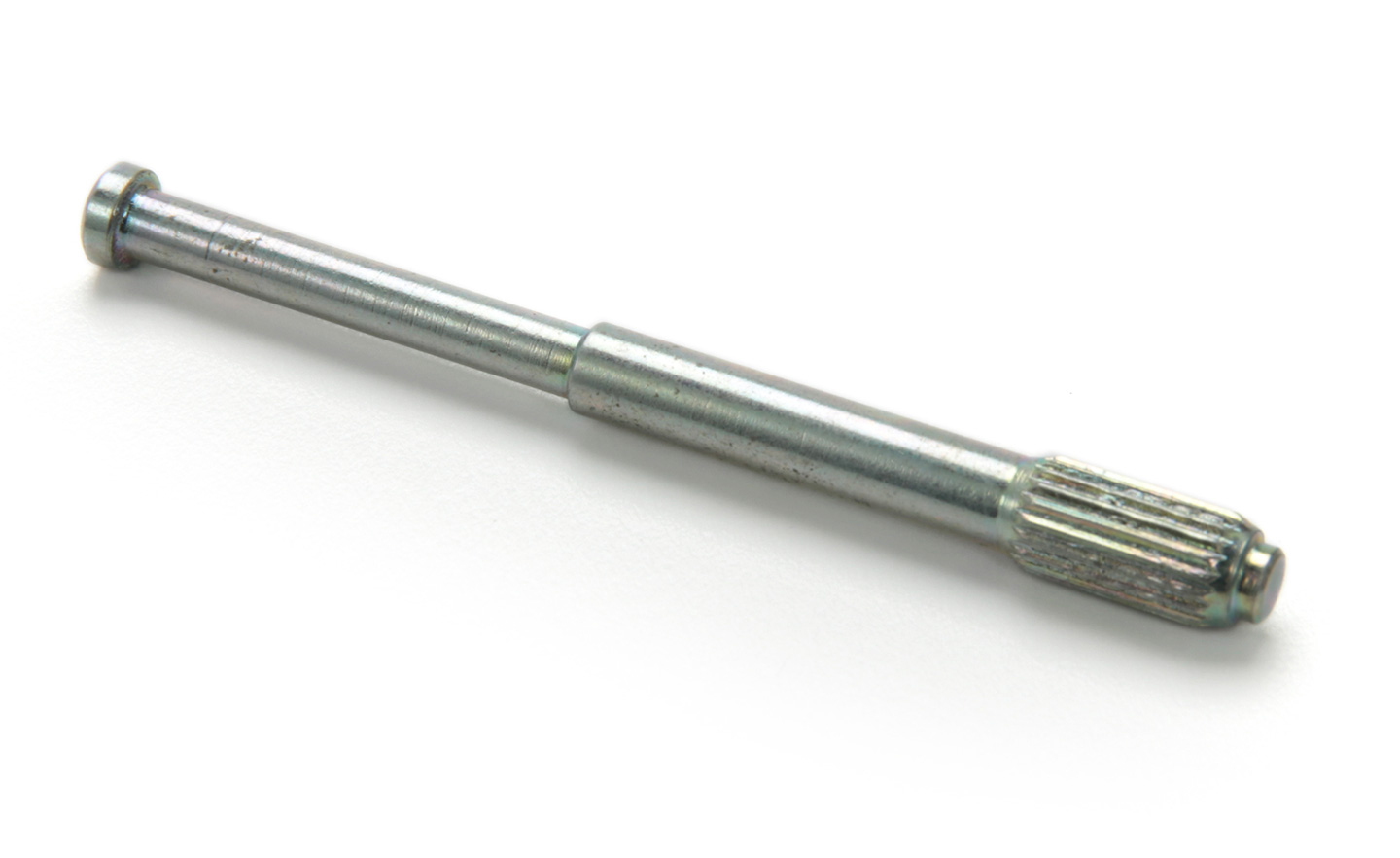

Model: KS0140

PRODUCT INFORMATIONKit Part #: KS0140
Repair Part Description: PWWI Pin Kit
Works with these Webb calipers: KL1400-01, KR1400-01, KL1400, KR1400, KL1400A-01, KR1400A-01, KL1400A, KR1400A

Model: KS0130

PRODUCT INFORMATIONKit Part #: KS0130
Repair Part Description: Pad Retainer Kit
Works with these Webb calipers: BL4400-40, BR4400-40, BL4400, BR4400, BL4700-41, BR4700-41, BL4700, BR4700, BL4700-41, BR4700-41

Model: KS0120

PRODUCT INFORMATIONKit Part #: KS0120
Repair Part Description: Pad Retainer Kit
Works with these Webb calipers: KL1400-01, KR1400-01, KL1400, KR1400, KL1400A-01, KR1400A-01, KL1400A, KR1400A

Model: KS0300

PRODUCT INFORMATIONKit Part #: KS0300
Repair Part Description: Plain Chain Cover Kit
Works with these Webb calipers: All Models

Model: KS0340

PRODUCT INFORMATIONKit Part #: KS0340
Repair Part Description: Stepped sensor fitted
Works with these Webb calipers: KL1400-01, KR1400-01, KL1400, KR1400, KL1400A-01, KR1400A-01, KL1400A, KR1400A

Model: KS0350

PRODUCT INFORMATIONKit Part #: KS0350
Repair Part Description: Adjuster Cap Kit
Works with these Webb calipers: All Models

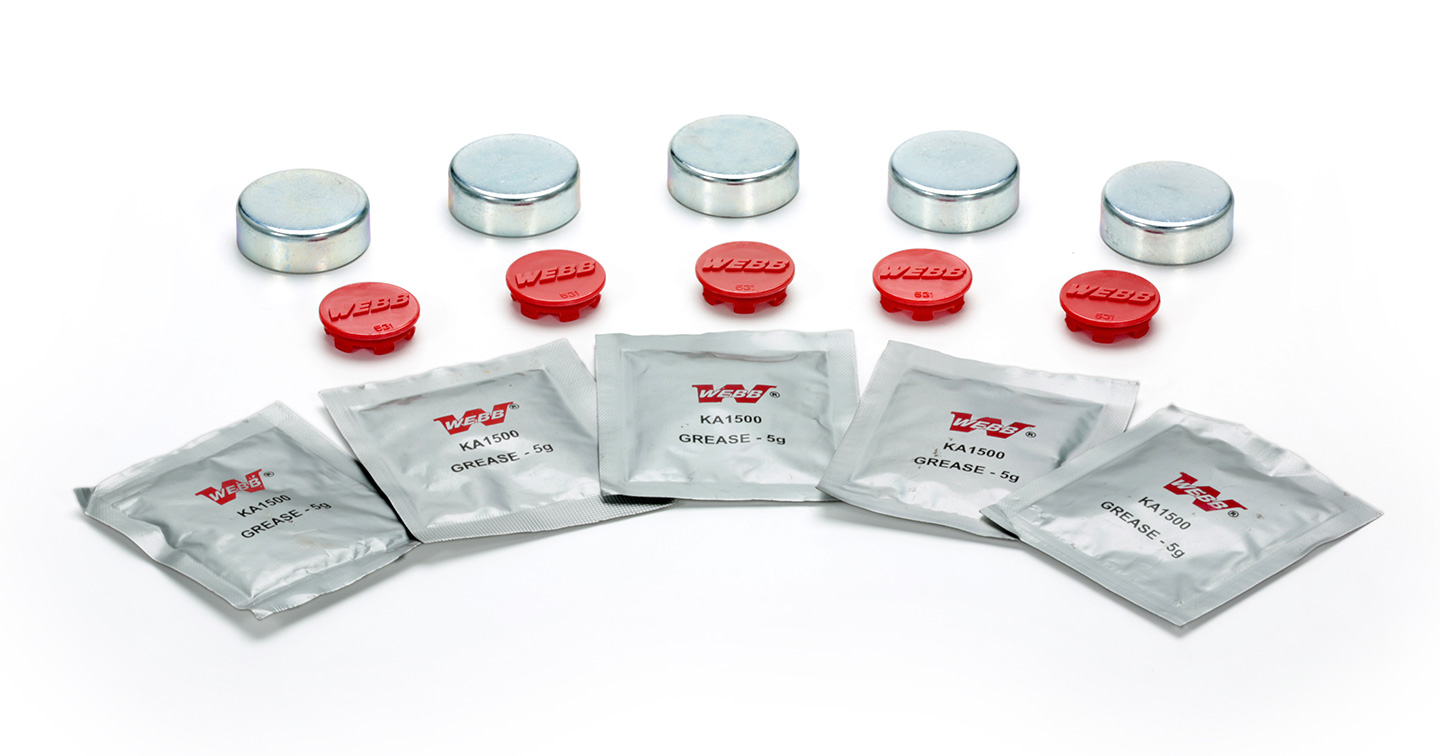

Model: KS0500

PRODUCT INFORMATIONKit Part #: KS0500
Repair Part Description: Cap and Grease Kit
Works with these Webb calipers: KL1400-01, KR1400-01, KL1400, KR1400, KL1400A-01, KR1400A-01, KL1400A, KR1400A

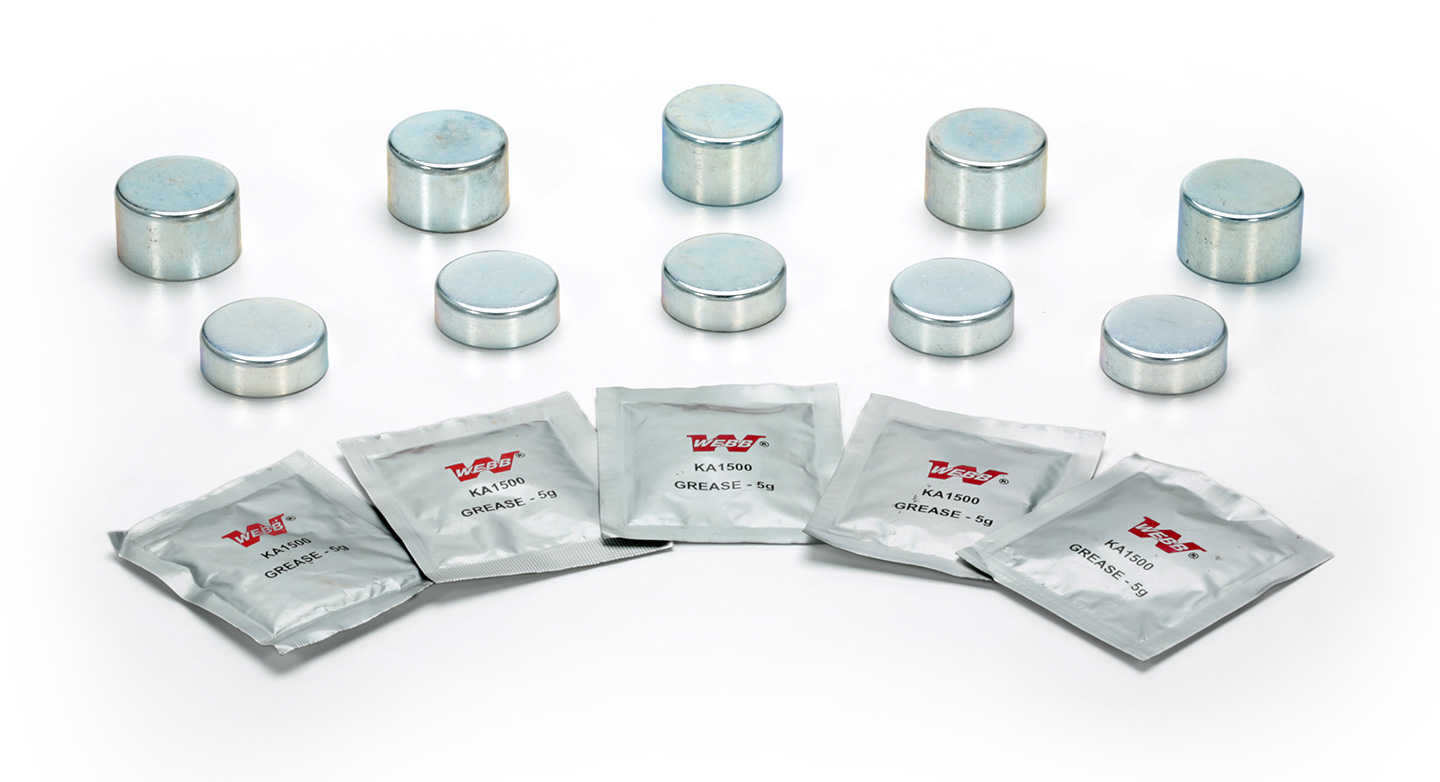

Model: KS0505

PRODUCT INFORMATIONKit Part #: KS0505
Repair Part Description: Cap and Grease Kit
Works with these Webb calipers: BL4400-40, BR4400-40, BL4400, BR4400, BL4700-41, BR4700-41, BL4700, BR4700, BL4700-41, BR4700-41

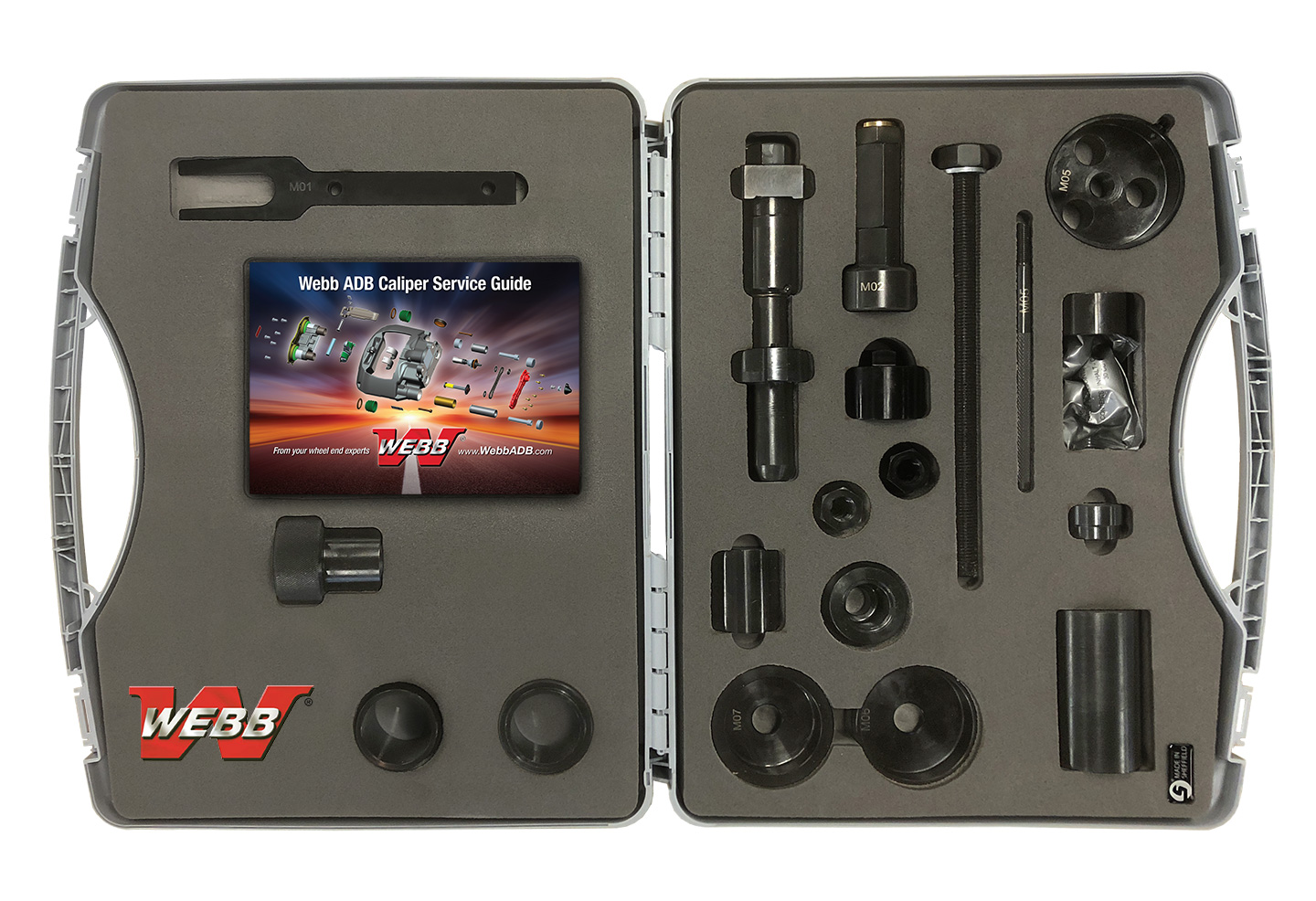

Model: KS0010

PRODUCT INFORMATIONKit Part #: KS0010
Repair Part Description: Caliper Service Tool Kit
Works with these Webb calipers: All Models

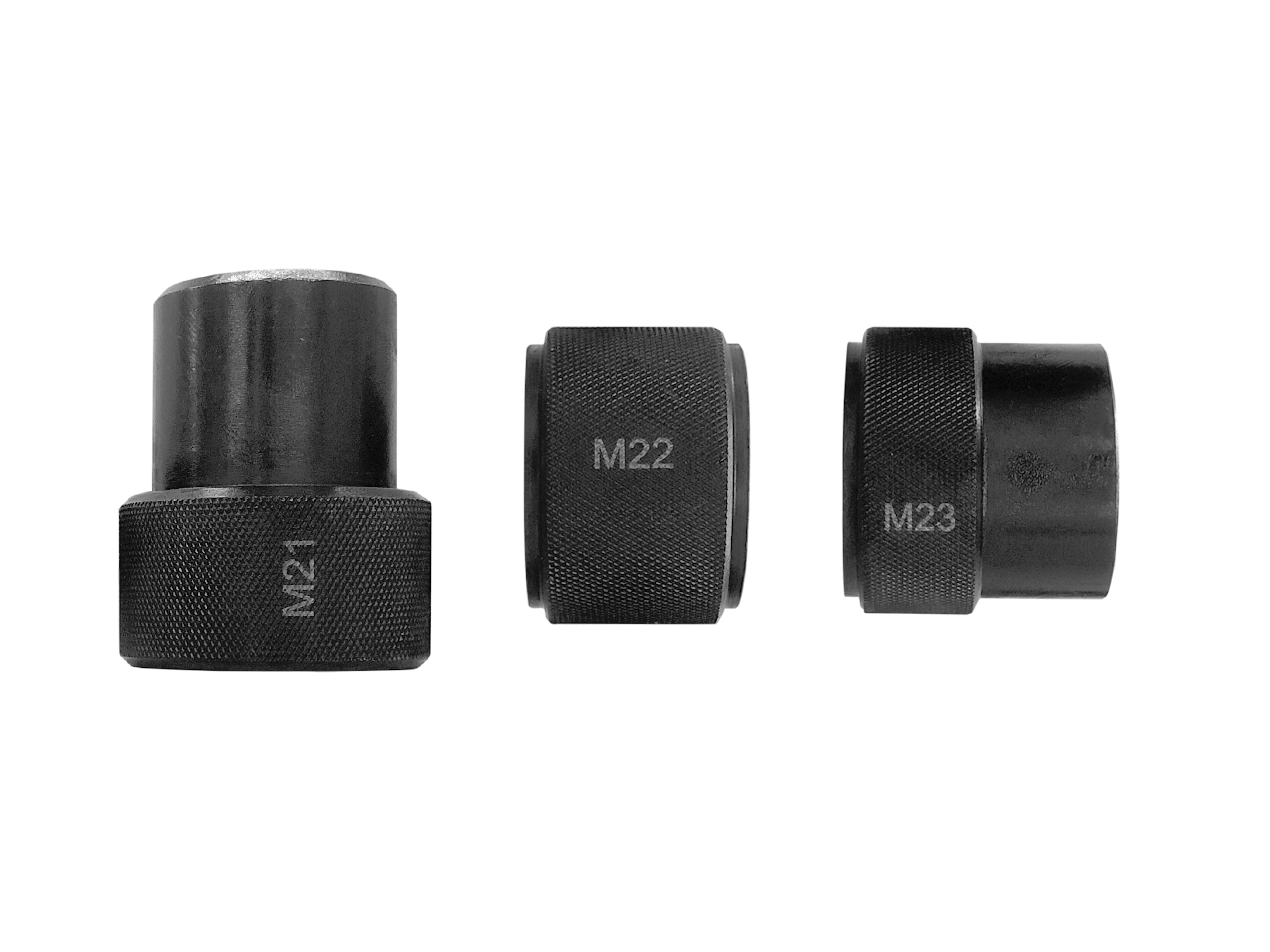

Model: KS0020

PRODUCT INFORMATIONKit Part #: KS0020
Repair Part Description: End Cap Fitting Kit
Works with these Webb calipers: All Models
