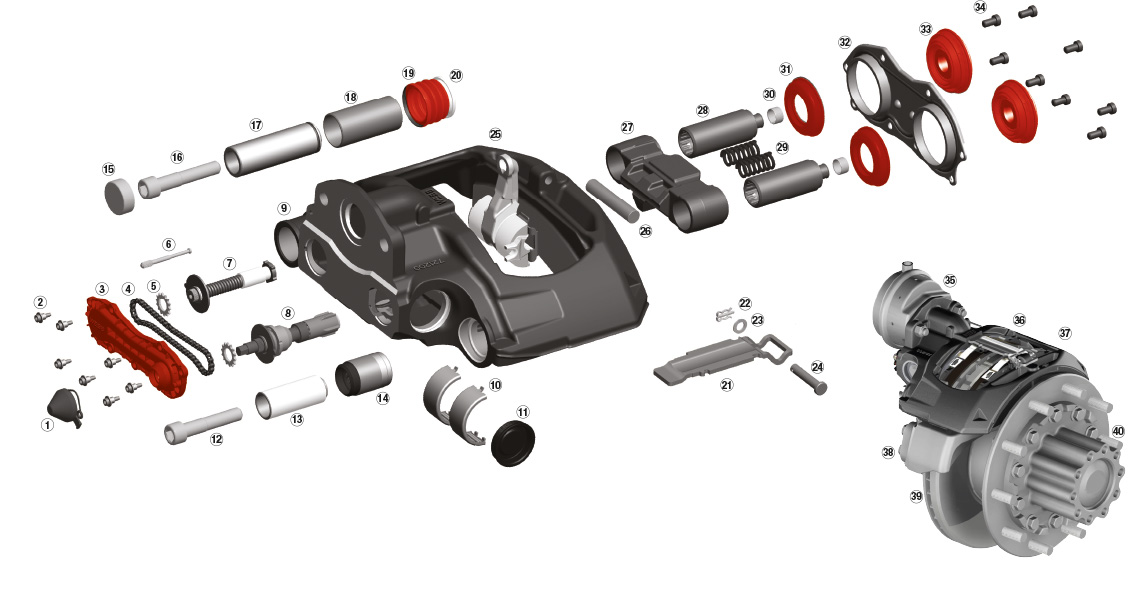

Glossary of brake parts

1. Adjuster Cap
2. Chain Cover Bolt
3. Chain Cover
4. Chain
5. Sprocket
6. Pad Wear Warning Indicator Pin
7. Secondary Adjuster Assembly
8. Primary Adjuster Assembly
9. Housing
10. Needle Bearing

11. Side Plug
12. Short Guide Sleeve Bolt
13. Short Guide Sleeve
14. Short Guide Sleeve Bushing
15. Long Guide Sleeve End Cap
16. Long Guide Sleeve Bolt
17. Long Guide Sleeve
18. Brass Bushing
19. Guide Sleeve Boot
20. Guide Sleeve Boot Washer


21. Pad Retainer
22. Pad Retainer Clip
23. Pad Retainer Washer
24. Pad Retainer Pin
25. Lever Assembly
26. Lever Roller
27. Actuation Block
28. Piston
29. Return Spring
30. Tappet Bushing

31. Secondary Seal
32. Cover Plate
33. Tappet Boot Assembly
34. Cover Plate Bolt
35. Air Chamber
36. Inboard Pad
37. Outboard Pad
38. Carrier
39. Brake Disc
40. Hub Assembly
